07520 - UPC636AE - Universal Pipe Cutters
Catalog No.: UPC636AE
Item Code: 07520
Specifications
Pipe Diameter
in-nom.
6 - 36
actual O.D. mm
150 - 1000
Application
Cast/Ductile Iron, Clay, Concrete, CPVC, PE, PVC Sch. 40, PVC C900 & C905, Steel Sch. 40
Gross Weight[1]
lbs
139
kg
63.1
[1]
Heaviest cutter component only 28 lbs/13 kg. Weights given include all items and toolbox.
Features
- EXPORT MODEL.

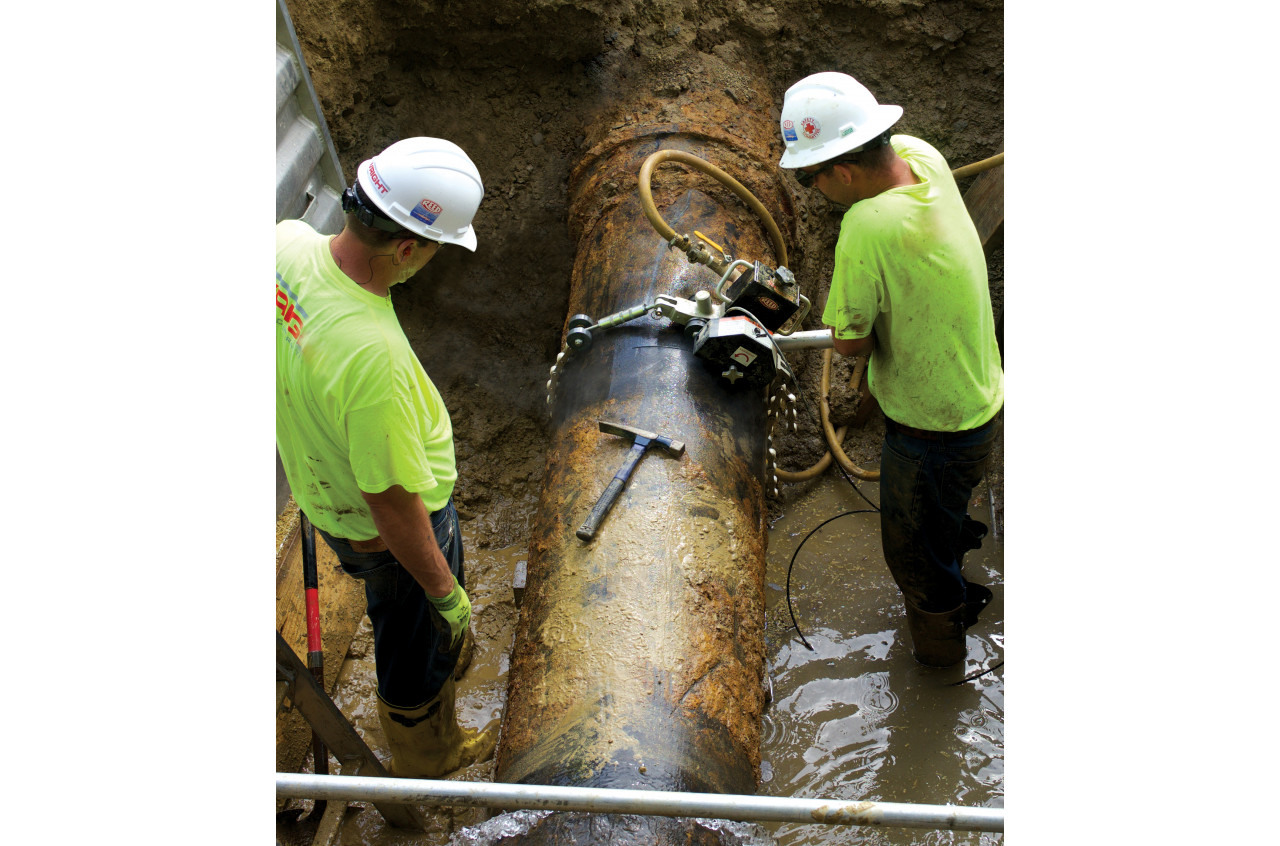

- Designed to cut full range of 6 inch to 36 inch diameter ductile or cast iron, clay, concrete, steel, PVC or PE pipe.
- Pneumatic cutter can be adapted to a variety of uses, depending on blade selected.
- Ships with 3.5 gallon water tank.
- Heaviest cutter component, the main body, weighs just 28 pounds (13 kg).
Must order REQUIRED blades SEPARATELY. Use REED's Blade Chart for guidance.
