Universal Pipe Cutters
Features
- Cut large diameter ductile or cast iron, clay, concrete, steel, PVC or PE pipe.
- Basic unit can be adapted to a variety of uses, depending on blade selected.
| 型番 | アイテム・コード | パイプ直径 | 用途 | 総重量 [1] | ||
|---|---|---|---|---|---|---|
| インチ（公称） | 実際のO.D. mm | ポンド | キログラム | |||
| UPC636A | 07510 | 6 - 36 | 150 - 1000 | Cast/Ductile Iron, Clay, Concrete, CPVC, PE, PVC Sch. 40, PVC C900 & C905, Steel Sch. 40 | 131 | 59.5 |
| UPC648A | 07511 | 6 - 48 | 150 - 1300 | Cast/Ductile Iron, Clay, Concrete, CPVC, PE, PVC Sch. 40, PVC C900 & C905, Steel Sch. 40 | 138 | 62.7 |
| UPC616A | 07512 | 6 - 16 | 150 - 450 | Cast/Ductile Iron, Clay, Concrete, CPVC, PE, PVC Sch. 40, PVC C900 & C905, Steel Sch. 40 | 89 | 40.5 |
| UPC616AP [2] | 07513 | 6 - 16 | 150 - 450 | PVC Sch. 40, C900/C905, CPVC | 75 | 34.1 |
| UPC836APE [3] | 07517 | 8 - 36 | 200 - 1000 | PE, HDPE | 101 | 45.9 |
| UPC848APE [3] | 07518 | 8 - 48 | 200 - 1300 | PE, HDPE | 106 | 48.2 |
Heaviest cutter component only 28 lbs/13 kg. Weights given include all items and steel toolbox.
新製品
Exclusive
Must order REQUIRED blades SEPARATELY.
UPC836APE, UPC848APE come with two blades.
NOTE: Universal Pipe Cutters must ship via truck freight.
The Reed UPC is lightweight; cuts fast; requires only 12” (300 mm) clearance around the pipe; provides a square cut virtually every time; and can be operated underwater. It is by far the safest, easiest and fastest power cutter to setup, operate and maintain, which nets a low operating cost.
Lightweight, easy-to-use Universal Pipe Cutters (UPC) are available to cut 6” - 48” nominal diameter (150-1300 mm actual O.D.) ductile iron, cast iron, clay, concrete, steel, PVC, or PE pipe. NOTE: When cutting steel pipe with the steel blades, sparks are possible and expected. Because of the sparks, the UPC cannot be used for cold cuts. Reed Universal Pipe Cutters are pneumatic powered. The lower cost UPC616A uses the same motor as the others, but does not need connecting frames. The UPC616 is shipped in a steel toolbox with a three-gallon, formed-steel water tank. The UPC636A and UPC648A UPCs come in a steel toolbox with a 6-gallon, stainless steel water tank and cart.
UPC836APE and UPC848APE are designed specifically for cutting PE pipe. The kit includes a 6" and 8" carbide tipped blade. The 8" blade will cut large diameter PE pipe with a wall thickness up to 2.65" (67mm). UPC836APE and UPC848APE also come in a steel box but without the water tank.

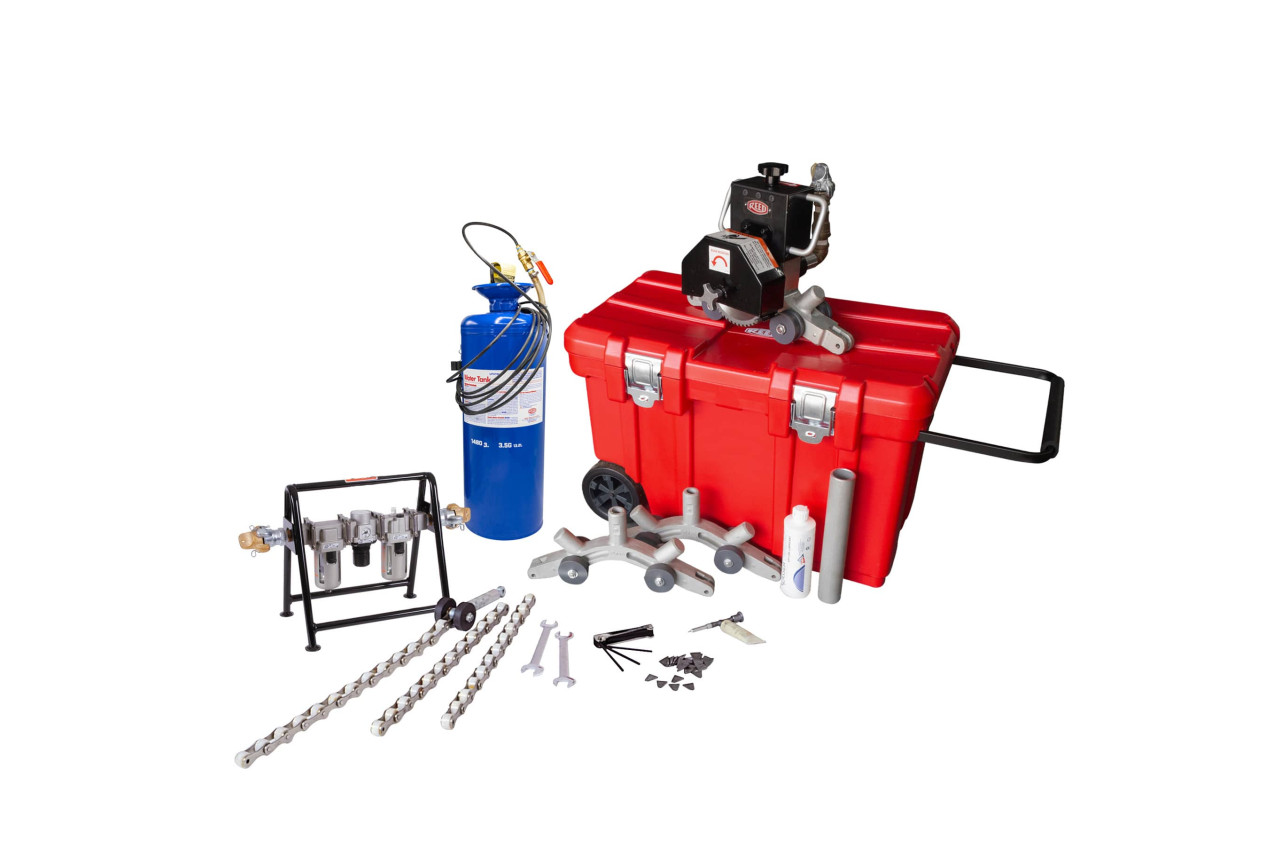

Standard Equipment
| Standard Equipment | UPC616A | UPC636A | UPC648A | UPC836APE | UPC848APE |
|---|---|---|---|---|---|
| Power Cutter with 1.7 H.P. Motor | ✓ | ✓ | ✓ | ✓ | ✓ |
| Chain/Turnbuckle Assembly | ✓cut up to 16" | ✓ | ✓ | ✓ | ✓ |
| Connection Frames & Chain to cut up to | N/A | 36" | 48" | 36" | 48" |
| Filter/Regulator/Lubricator with Stand | ✓ | ✓ | ✓ | ✓ | ✓ |
| Water Tank | 3 gallon | 6 gallon w/cart | 6 gallon w/cart | ||
| Carrying Case | ✓ | ✓ | ✓ | ✓ | ✓ |
| Air Motor Oil | ✓ | ✓ | ✓ | ✓ | ✓ |
| Grease Gun | ✓ | ✓ | ✓ | ✓ | ✓ |
| Hex Key Wrench Set | ✓ | ✓ | ✓ | ✓ | ✓ |
| Open End Wrenches | ✓ | ✓ | ✓ | ✓ | ✓ |
| Wedges | ✓ | ✓ | ✓ | ✓ | ✓ |
| UPCSTEEL6 6” blade | ✓ | ✓ | |||
| UPCPE8 8” blade | ✓ | ✓ |
Universal Pipe Cutter Power Requirements
| Maximum R.P.M. | 3675 |
| Air Consumption | 50 cu. ft./min (1.4 cu. m/min.) |
| Pressure | 90 P.S.I. Maximum (6 BAR) |
| Shut-Off | 3/4" Ball Valve |
| Air Supply Fittings | 3/4" Dixon "Air King" Coupling |
UPC motor reconditioning/refurbishing is available. Please send motor “freight prepaid” to our factory. Reed will handle forwarding to appropriate manufacturer. Hydraulic motor repairs are priced on a case by case basis; pneumatic motor repairs are flat rate. Complete UPC cutters can also be reconditioned / refurbished. UPC cutters should arrive freight prepaid at our factory. Quotes will be issued upon inspection of the unit and labor charges apply. Call 800-666-3691 for a return authorization number.
UPC in use Calgary, AB
UPC in use in Calgary, AB
