Thru-Bolt™ Ratchet Wrench Handles

Features

  • Choose from malleable iron cast handles or lower cost, steel stamped handles.
  • “Quick release” handles permit fast socket changes.
  • L564 features an adjustable handle for hard-to-reach spots.
  • L23, L24 and L26 large diameter sockets work with L152 handle.

localement ou en ligne

Nº CatalogueCode ItemType Taille de la poignée Poids
Poignée Rétention de la douille po mm lb kg
L50 02258Cast Retaining Ring 11 280 1.5 0.7
L51 02259Cast Retaining Ring 13 330 1.7 0.8
L500 02260Cast Quick Release 13 330 1.7 0.8
L150 02261Stamped Retaining Ring 11 280 1.4 0.6
L151 02262Stamped Retaining Ring 13 330 1.7 0.8
L564 02263Cast & Adjustable Quick Release 16 420 3.5 1.6
L152 02670Stamped Retaining Ring 17 432 2.5 1.1
Why Reed

The Reed Thru-Bolt ratchet handles and sockets substantially reduce the time required to tighten or remove nuts so assembly time and cost are cut considerably

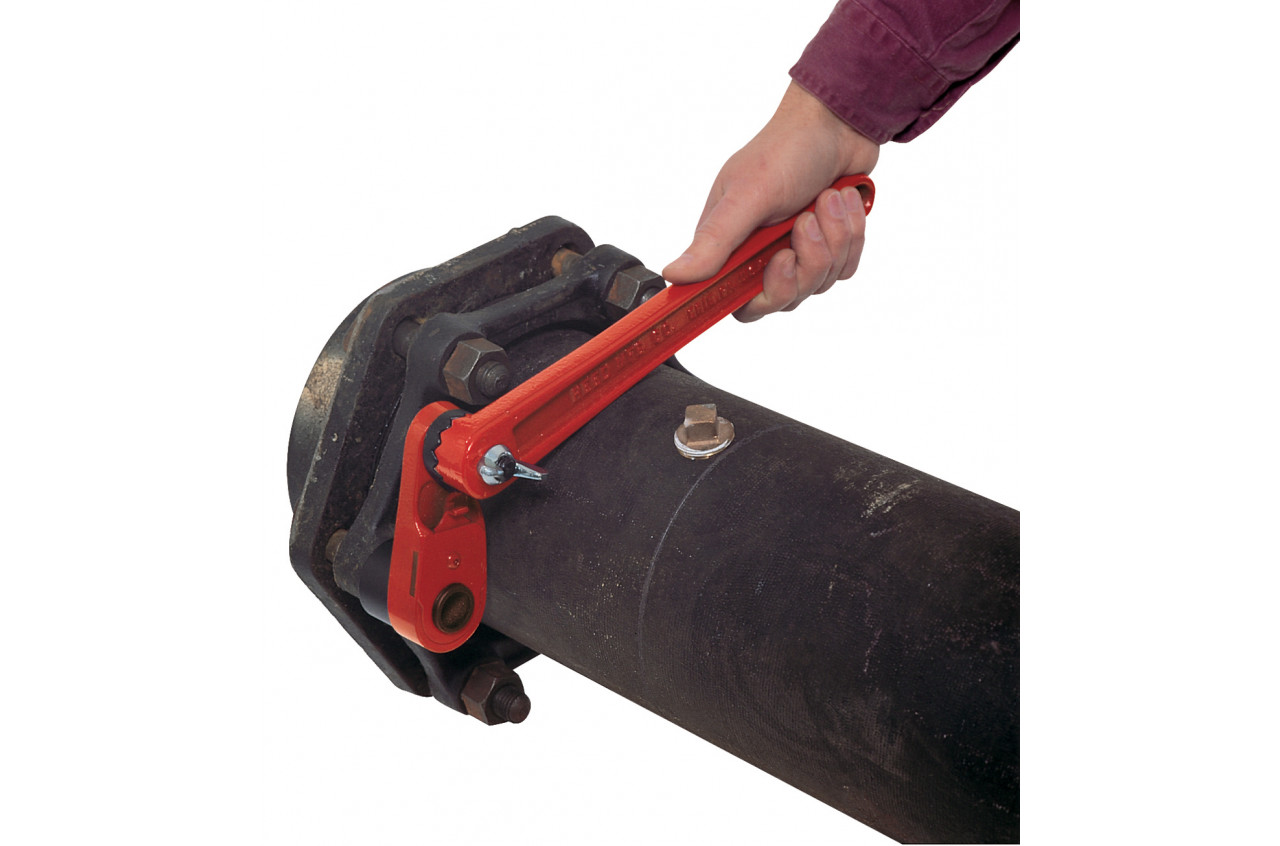

L564 features a “quick release” button along with an adjustable handle for hard-to-reach spots.

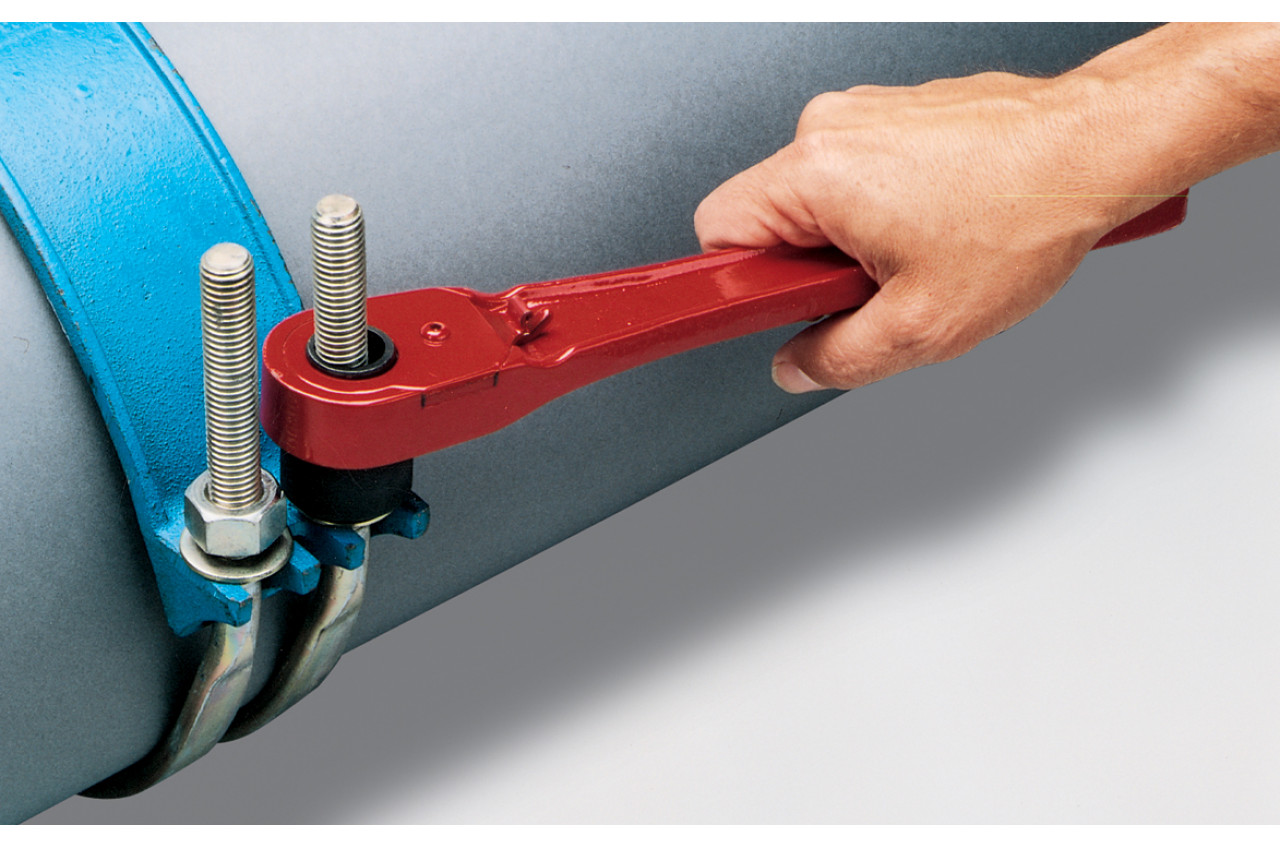

Reed Thru-Bolt™ ratchet wrenches work faster than pipe wrenches or adjustable wrenches for tightening or loosening nuts on long, threaded bolts of service saddles, repair clamps, flanges, mechanical couplings, etc. Reed Thru-Bolt™ Ratchet Wrench Handles are made with traditional malleable iron or lower cost steel stampings. For larger hardware found on 30” - 36” diameter pipe, the L152 is the Thru-Bolt™ ratchet wrench suited to the job. It's larger sockets are L23, L24, and L26. (Sockets sold separately.)

There are currently no Accessories
