Cintreuses à tubes

Tubing Benders Features

  • Used for bending steel, stainless steel, copper, aluminum and other metal tubing of bending temper.
  • TB3456 covers four sizes with one tool.

localement ou en ligne

Metric Sizes
Nº CatalogueCode ItemCapacité du tube [1]Rayon de pliage Poids
D.E. réel en po mm lb kg
TB3456 027423/16, 1/4, 5/16, 3/8 5, 6.5, 7.9, 9.5 15/16 1.9 0.9
TB04 027451/4 - 9/16 1.0 0.5
TB06 027463/8 - 15/16 2.0 0.9
TB08 027471/2 - 1 1/2 3.5 1.6
TB12 027493/4 - 3 7.0 3.2
[1]

1/4" = 1/8" nominal, 3/8" = 1/4" nominal, 1/2" = 3/8" nominal

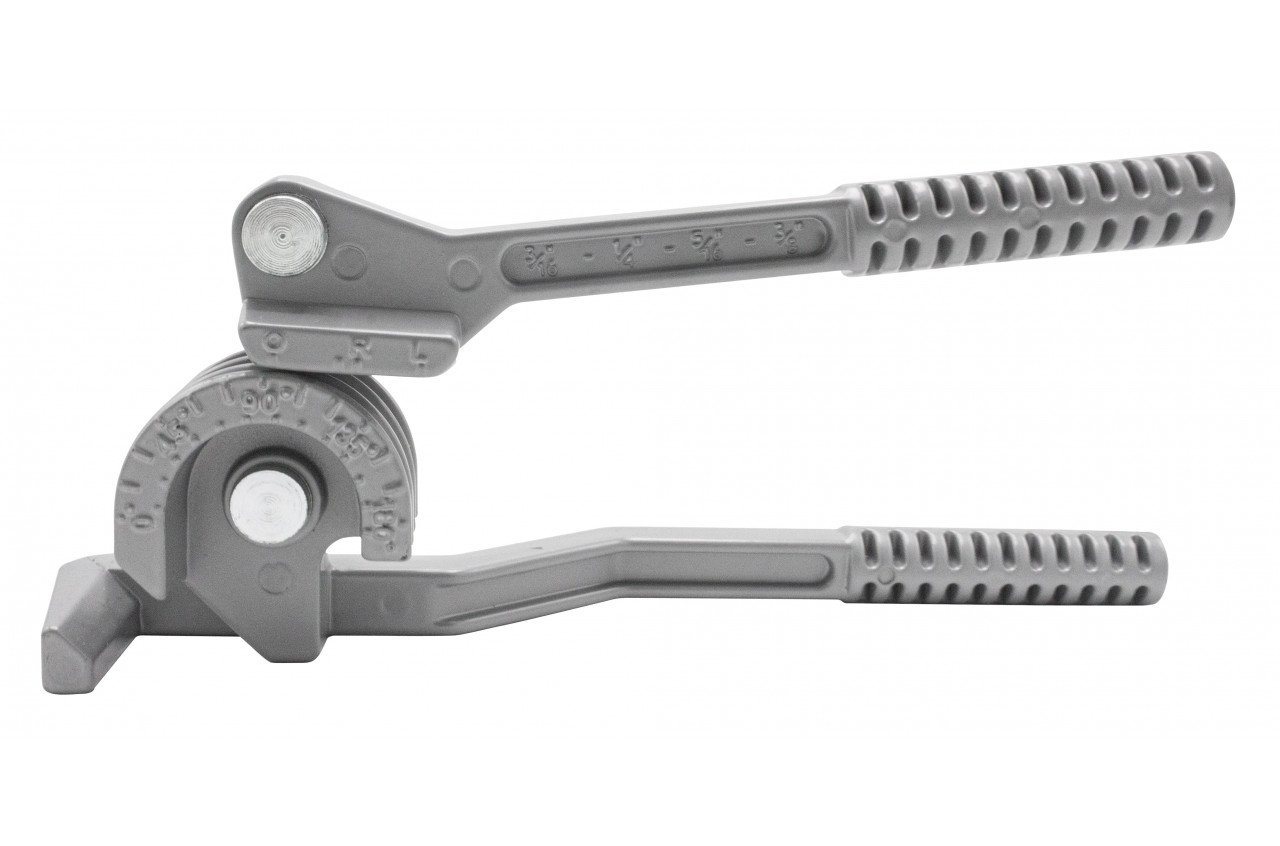

Reed Tubing Benders, in popular sizes, are ideal for bending soft metal tubes of copper, steel, stainless steel, and aluminum. The tubing benders should not, however, be used on extremely thin or hard-tempered material. All metal parts are chrome plated for corrosion resistance. Starting at a 90° angle, ergonomic round offset handles allow bends up to 180°. Calibrated angle markings appear every 15°, with separate gauge marks for right (R), left (L), and normal (O). TB3456 Quad Bender is ideal for plumbing and HVAC applications because there are four sizes in one tool.
