Pipe Wrenches - Heavy Duty, Straight

RW8
Pipe Wrenches - Heavy Duty, Straight

Features

  • Designed to withstand the heaviest demands.
  • Solid steel pin in the heel jaw strengthens Reed's heavy duty straight pipe wrenches.

Specifications

Catalog No.Item CodePipe CapacityLengthWeight
in-nom.actual O.D. mminmmlbskg
RW8021201/8 - 110 - 3382031.00.5
RW10021301/8 - 1 1/210 - 48102541.90.9
RW12021401/8 - 210 - 60123052.91.3
RW14[1]021501/4 - 214 - 63143563.61.6
RW18021601/4 - 2 1/214 - 75184576.12.8
RW24021701/4 - 314 - 90246109.94.5
RW36021801/4 - 514 - 1413691415.67.1
RW48021901 1/2 - 648 - 16848121932.714.9
[1]

AWWA Approved

More Information

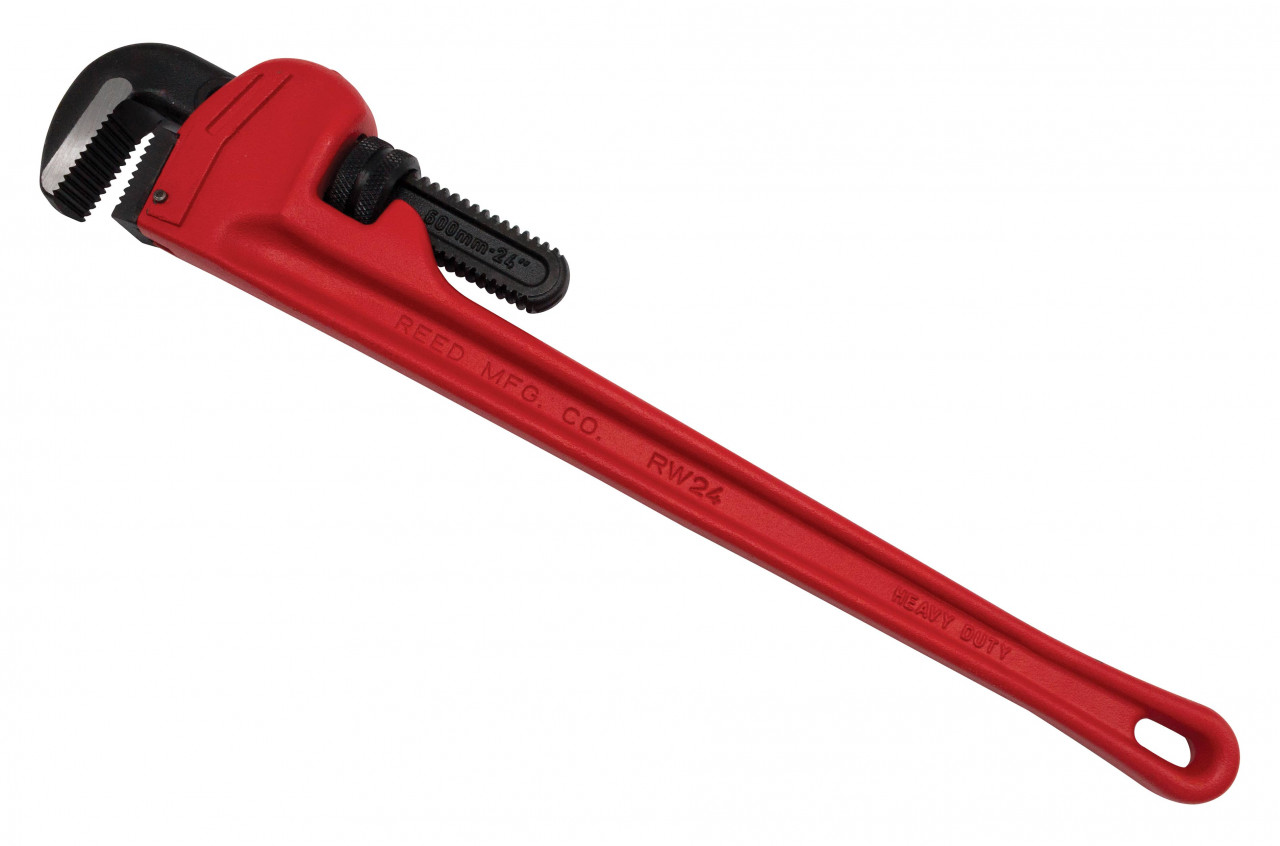

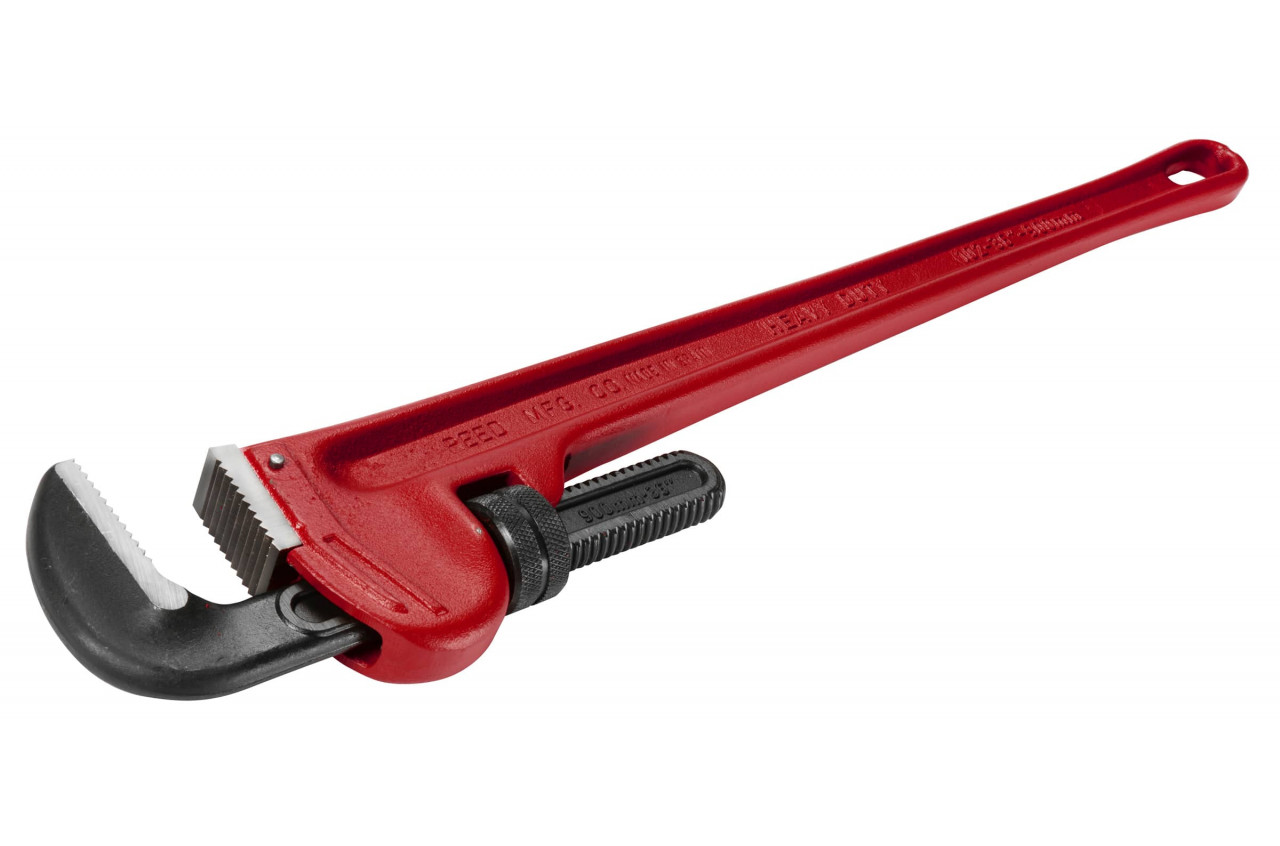

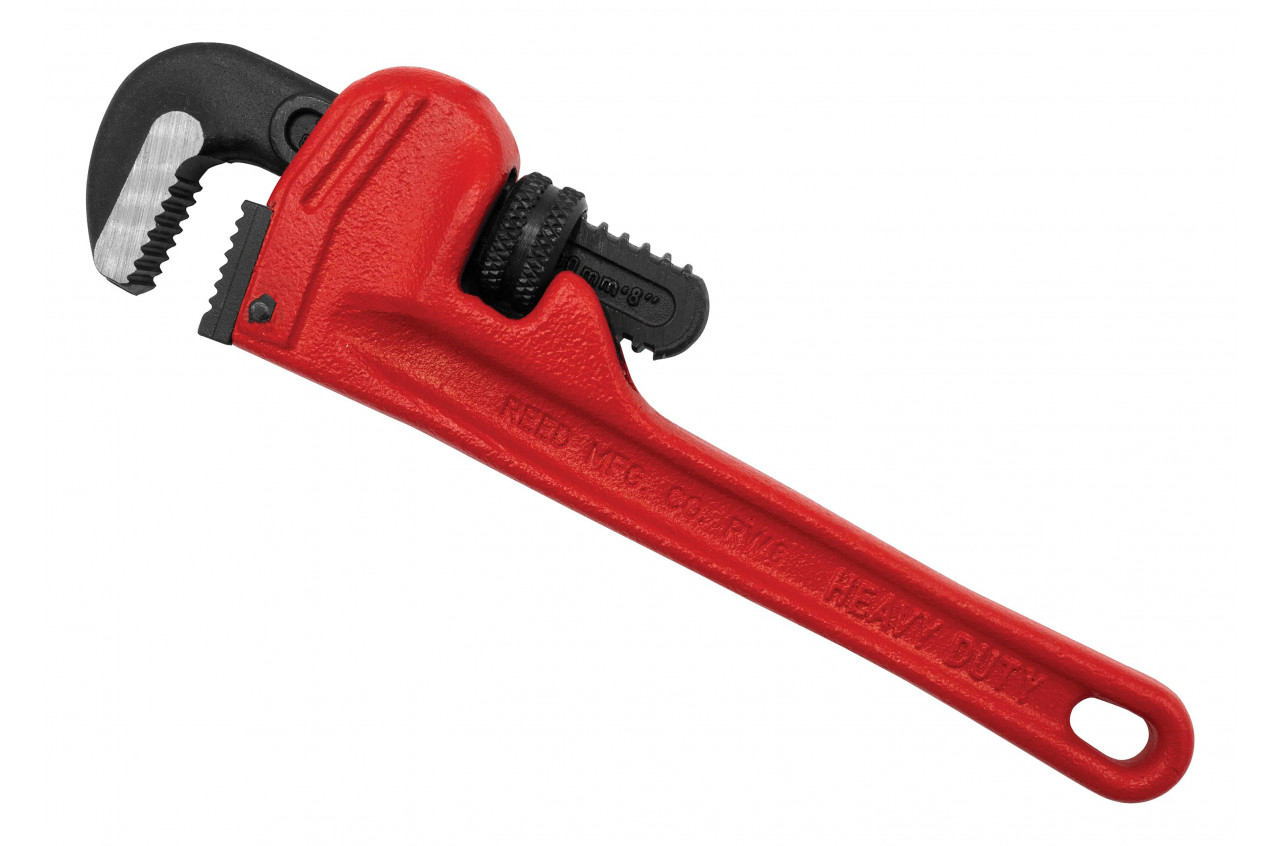

Reed Heavy Duty Straight Pipe Wrenches are the most popular pipe wrench style. High-tensile ductile iron handle and hardened, alloy steel parts are designed to withstand the heaviest demands.  New production tooling for the hook jaws produces sharper teeth on the 18”, 24”, and 36” models. This change yields a still better grip for hard oil field pipe.



NOTE: Reed heavy duty straight pipe wrench parts are interchangeable with most major, heavy-duty U.S. brands (including RIDGID®) of straight, 45° offset and end wrenches from 18” - 48”. Parts available include hook jaw, heel jaw and pin, coil and flat spring, and nut.

No minimum order quantities on wrenches or parts!
