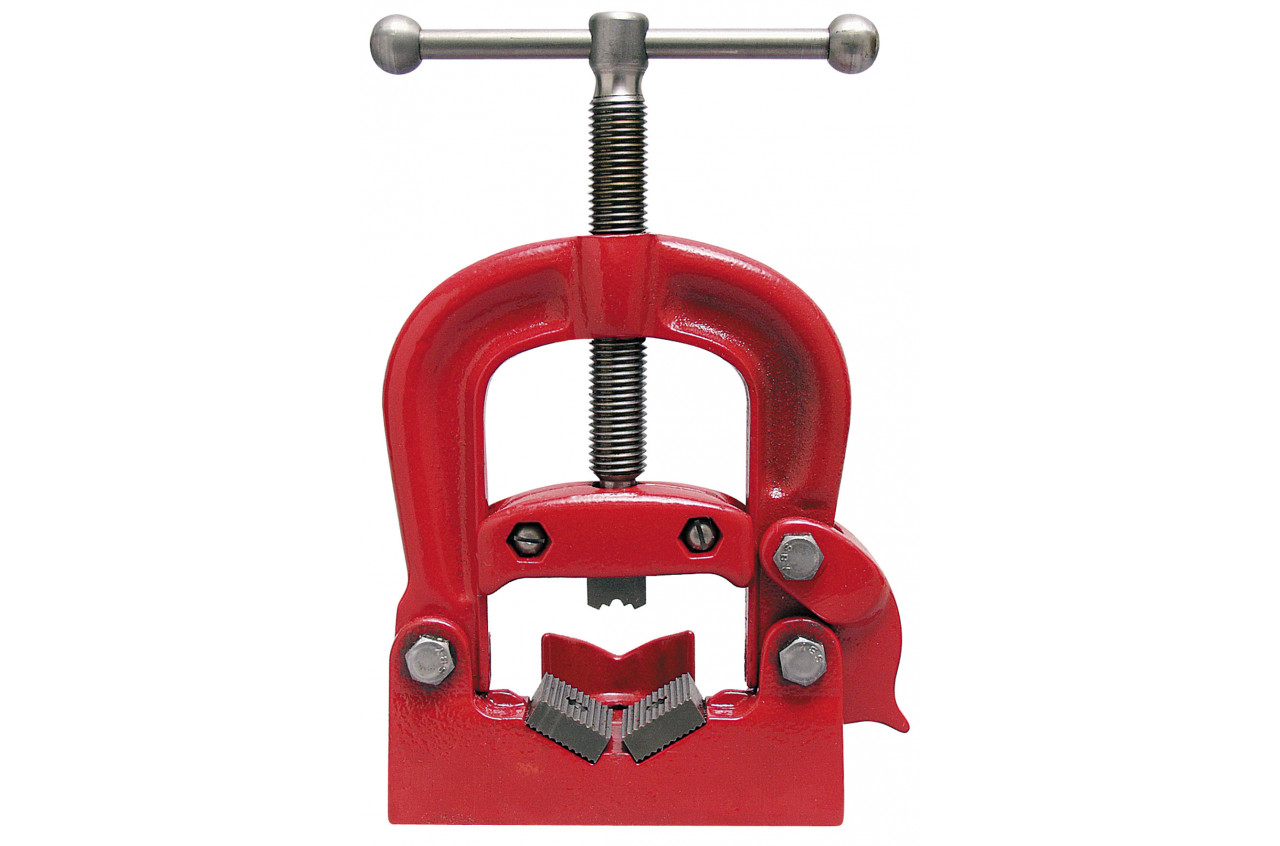

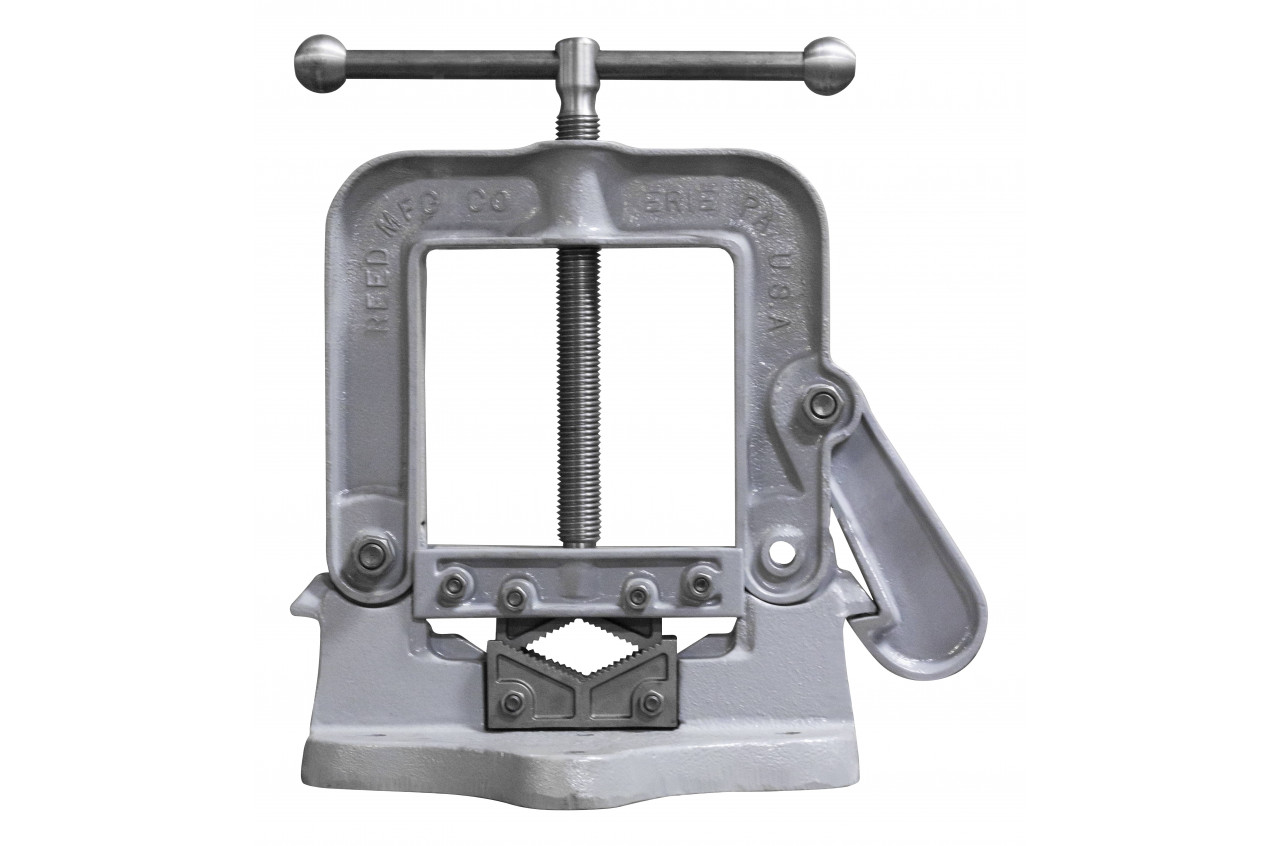

Yoke Pipe Vises

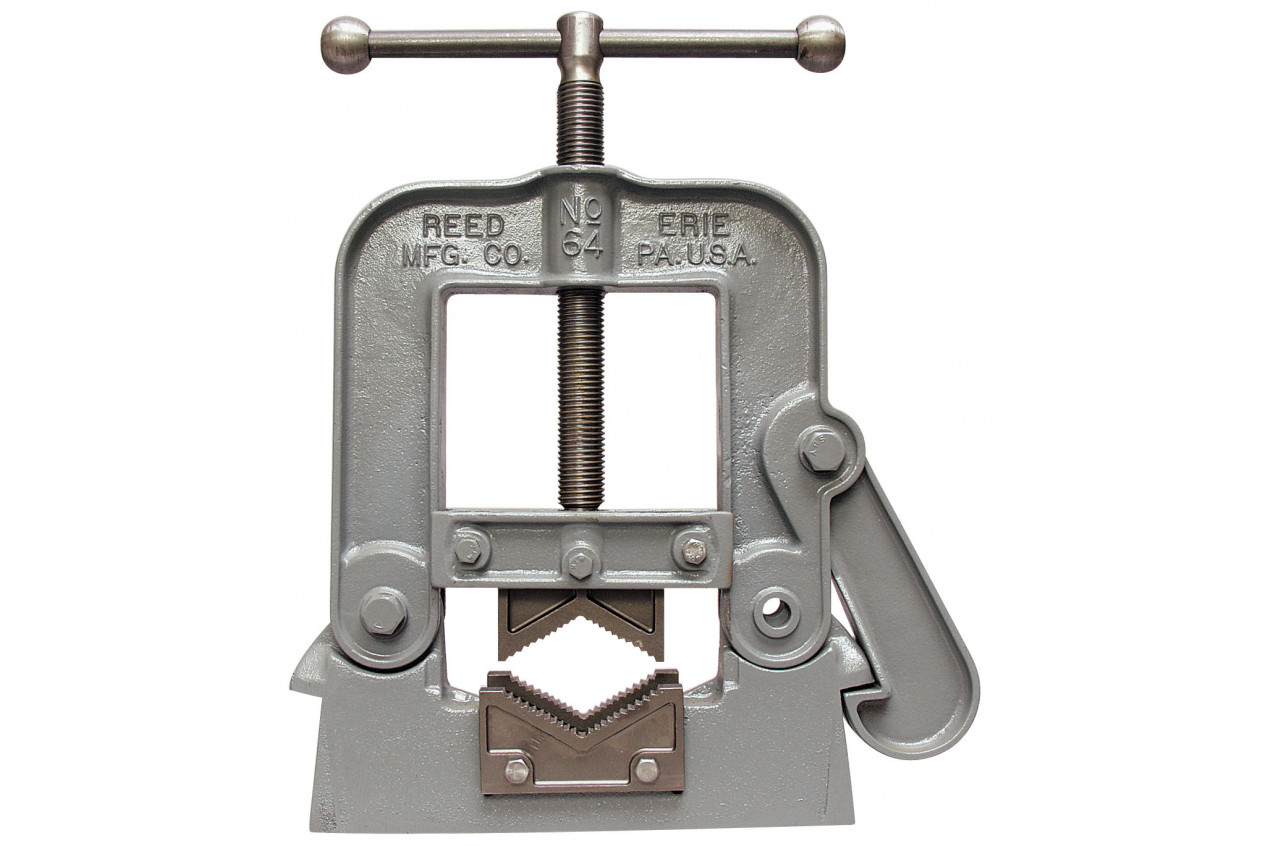

64 - also represents 65, 66
Yoke Pipe Vises

Features

  • Best choice for all pipe work because there are four points of contact for the jaws to grip the pipe.
  • Reed yoke vises are very solidly built, and provide the powerful grip required for demanding pipe fitting and threading operations.

Specifications

Catalog No.Item CodePipe CapacityWeight
in-nom.actual O.D. mmlbskg
R0024201/8 - 210 - 606.73.0
R1024301/8 - 2 1/210 - 759.84.5
R2024401/8 - 3 1/210 - 10216.37.4
R3024501/8 - 4 1/210 - 12725.011.4
64024601/4 - 614 - 16849.022.3
65[1]024701 - 832 - 21980.036.4
66[1]024801 1/2 - 1248 - 335168.076.4
[1]

Must ship via truck freight.

More Information

Yoke vises permit the strongest jaw-to-jaw gripping of pipe for high-torque applications like threading. Reed yoke vises are made of ductile or malleable iron and have hardened, high carbon steel jaws for toughness and long life. These yoke vises easily convert from right- to left-hand operation and back, making it simple to work around obstructions or to accommodate right- or left-hand user preference.

Exclusive Features
Why Reed

jawsDouble-faced lower jaws on R Series allow reversal before replacement. Only Reed makes yoke vises in 8" and 12" capacities.

Documents

Get Adobe Reader
53_Pipe_Vise_thumbnail.png 34_Yoke_Pipe_Vise_thumbnail.png
Parts Diagrams
