Tripod Pipe Vises
- Patented, reversible double-sided bowtie jaws.
- Very sturdy due in part to the overlapping hinges on the lower tray and the adjustable tray clamp.
- Handle grip is positioned for best portage of the folded tripod.
- Sides on folding tray keep tools and parts safe from falling or rolling off.
|Catalog No.||Item Code||Vise Style||Pipe Capacity||Folded Length||Weight|
|in-nom.||actual O.D. mm||in||mm||lbs||kg|
|R450+||02306||Chain||1/8 - 6||10 - 178||44||1118||36.3||16.5|
|R40+||02311||Yoke||1/8 - 2 1/2||10 - 75||51||1295||39.1||17.8|
|R450EXPORT||02312||Chain||1/8 - 6||10 - 178||44||1118||36.3||16.5|
|R40EXPORT||02313||Yoke||1/8 - 2 1/2||10 - 75||51||1295||39.1||17.8|
|R450PAL||04456||Chain with Neoprene Coated Jaws||Plastic: 1/8 - 6|
Conduit: 1/8 - 2
|Plastic: 10 - 178|
Conduit: 10 - 51
|R450P||04457||Chain with Neoprene Coated Jaws||1/8 - 6||10 - 178||44||1118||36.3||16.5|
|R450C||04458||Chain||1/8 - 6||10 - 178||44||1118||37.4||17.0|
|R470P||04459||Chain with Neoprene Coated Jaws||1/8 - 6||10 - 178||44||1118||42.0||19.1|
|R470+||09402||Chain||1/8 - 6||10 - 178||44||1118||42.0||19.1|
|R470EXPORT||02314||Chain||1/8 - 6||10 - 178||44||1118||42.0||19.1|
REED Tripod Pipe Vises are among the strongest pipe vises available. They are manufactured with heavy gauge steel, overlapping hinges, and the best adjustable tray clamp, not a set screw, to keep the lower tray assembly and entire portable workbench tight, even after many hours of use. The heavy-duty design permits use with pipe up to 6” diameter. Tripods fold into a compact shape, have a padded handle grip at the balance point, and boast the lightest weight for the easiest portability of all well-known tripod pipe vises. R470+ offers the same great features as REED’s R450+, but R470+ provides a 60 percent larger top tray and a 45° cranking handle.

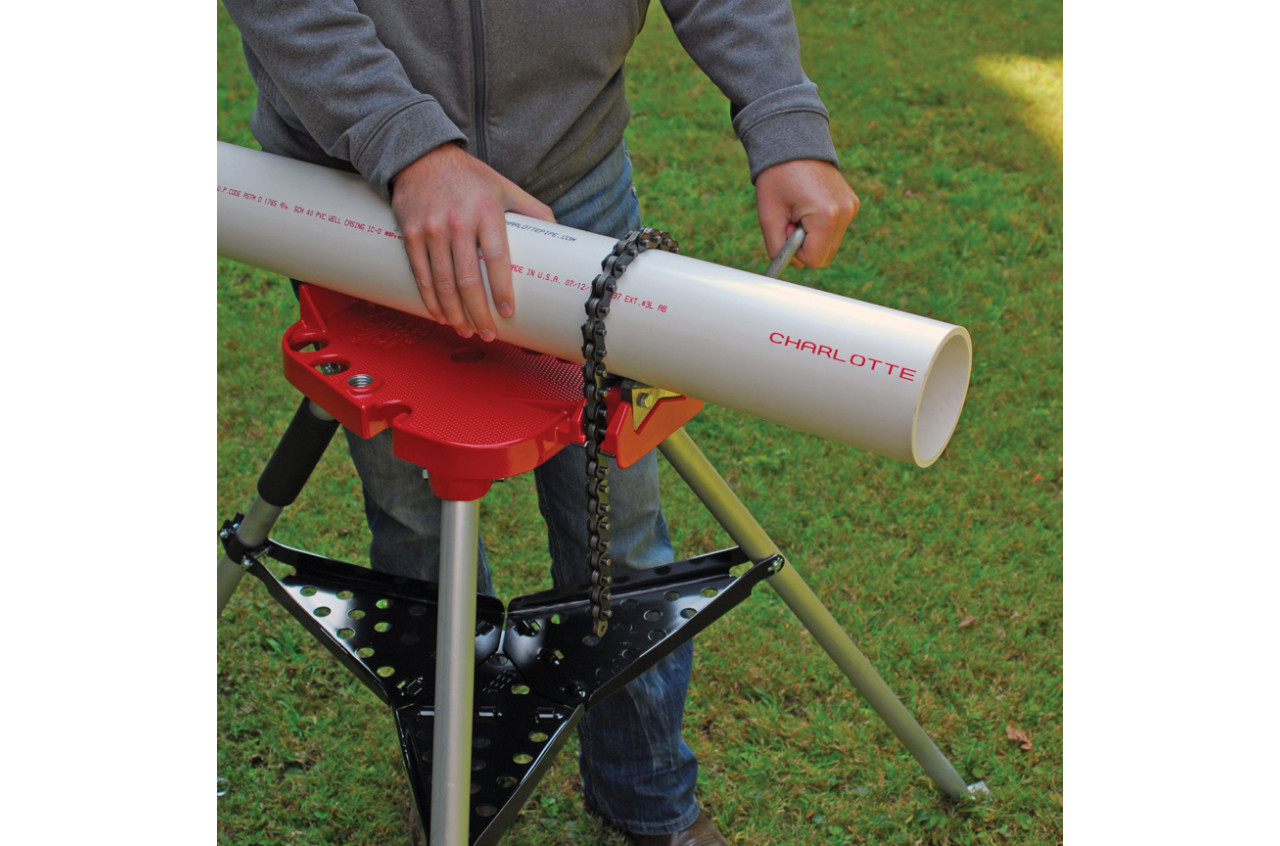

All REED tripod pipe vises offer double-sided, patented “bowtie jaws” for 15% extra value versus purchase of a second jaw set. Reverse the jaws for an extra face and save the cost of buying a replacement set as soon. Exclusive double-faced jaws on the R450P, R470P and R470PAL offer one neoprene side for plastic pipe/soft metals and the other regular jaw for metal pipe. Neoprene jaws provide protection against damaging plastic pipe and soft metal pipe. Jaws are easily rotated from plastic pipe to metal pipe position to protect against damage and to maximize productivity.

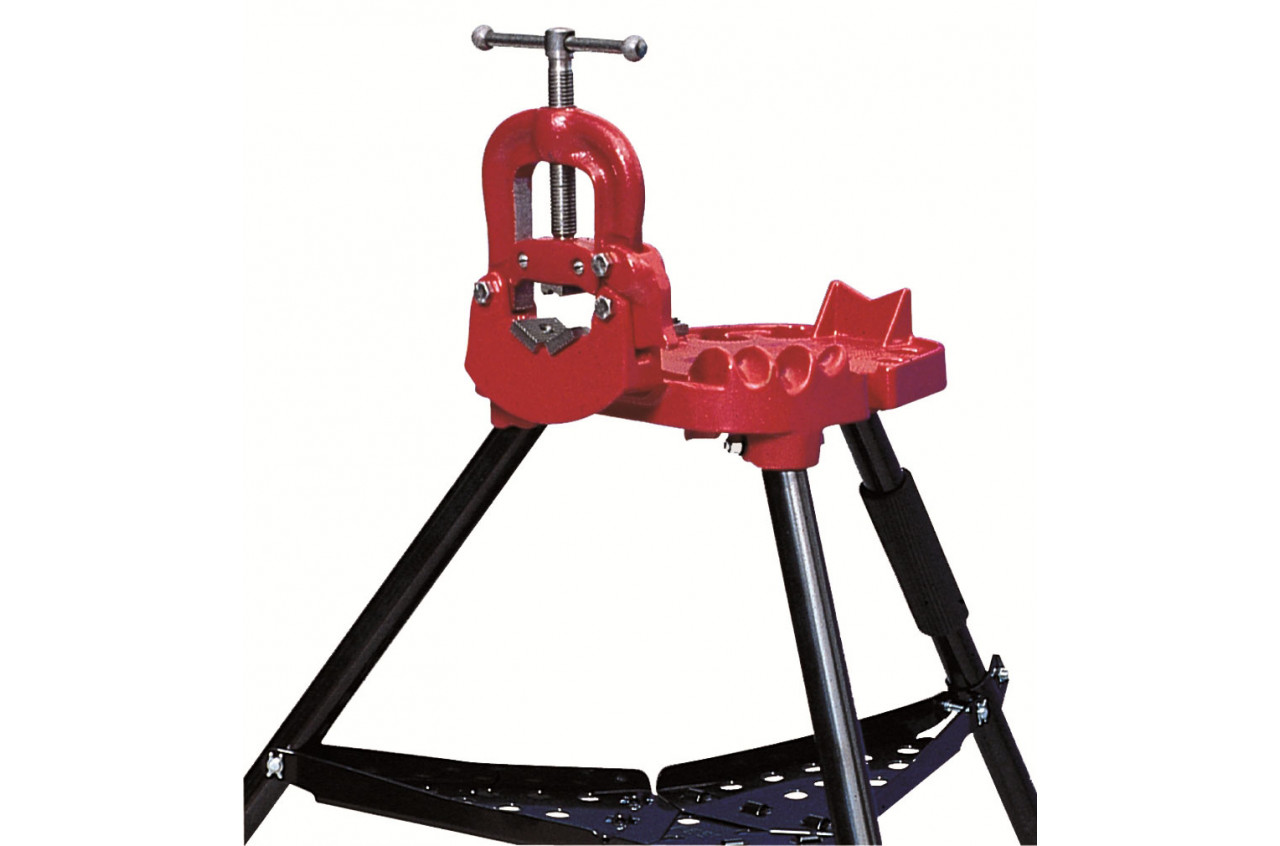

R40+ yoke pipe vise with 2 ½” pipe capacity is built on the same, sturdy tripod platform. Double-sided jaws allow for reversal before replacement.
Ask for REED/RIDGID® brand interchangeable parts list for RIDGID® brand 460 and 40.
REED Tripod Pipe Vises are the sturdiest on the market. Double-sided jaws give user an extra set of jaws FREE. Tripod bodies are lightweight and feature a padded handle for carrying ease, making them the most portable and best value tripod pipe vises available.
