5301PD Power Drive
Features
Specifications
| Catalog No. | Item Code | Description | Capacity | Gross Weight | ||
|---|---|---|---|---|---|---|
| in-nom. | actual O.D. mm | lbs | kg | |||
| 5301PD | 05301 | Power Drive 38 RPM, 120V with Footswitch only | 1/8 - 2 Pipe 1/4 - 2 Bolt | 3 - 50 Pipe 6 - 50 Bolt | 93.0 | 43.0 |
| 5301PDCOMP | 05303 | Power Drive Complete 38 RPM, 120V, NPT Dies[1] | 1/8 - 2 Pipe 1/4 - 2 Bolt | 3 - 50 Pipe 6 - 50 Bolt | 208.0 | 95.0 |
COMPLETE units contain Power Drive, Footswitch, Tripod, Carriage with Lever, Pipe Cutter, Reamer, R811 Universal Die Head, Transporter, Oiler, 1 gallon Threadguard Cutting Oil and one set each High Speed Steel Universal Dies: 1/2” - 3/4” and 1” - 2” NPT.
NOTE: 5301PD Power Drives ship via truck freight.
More Information

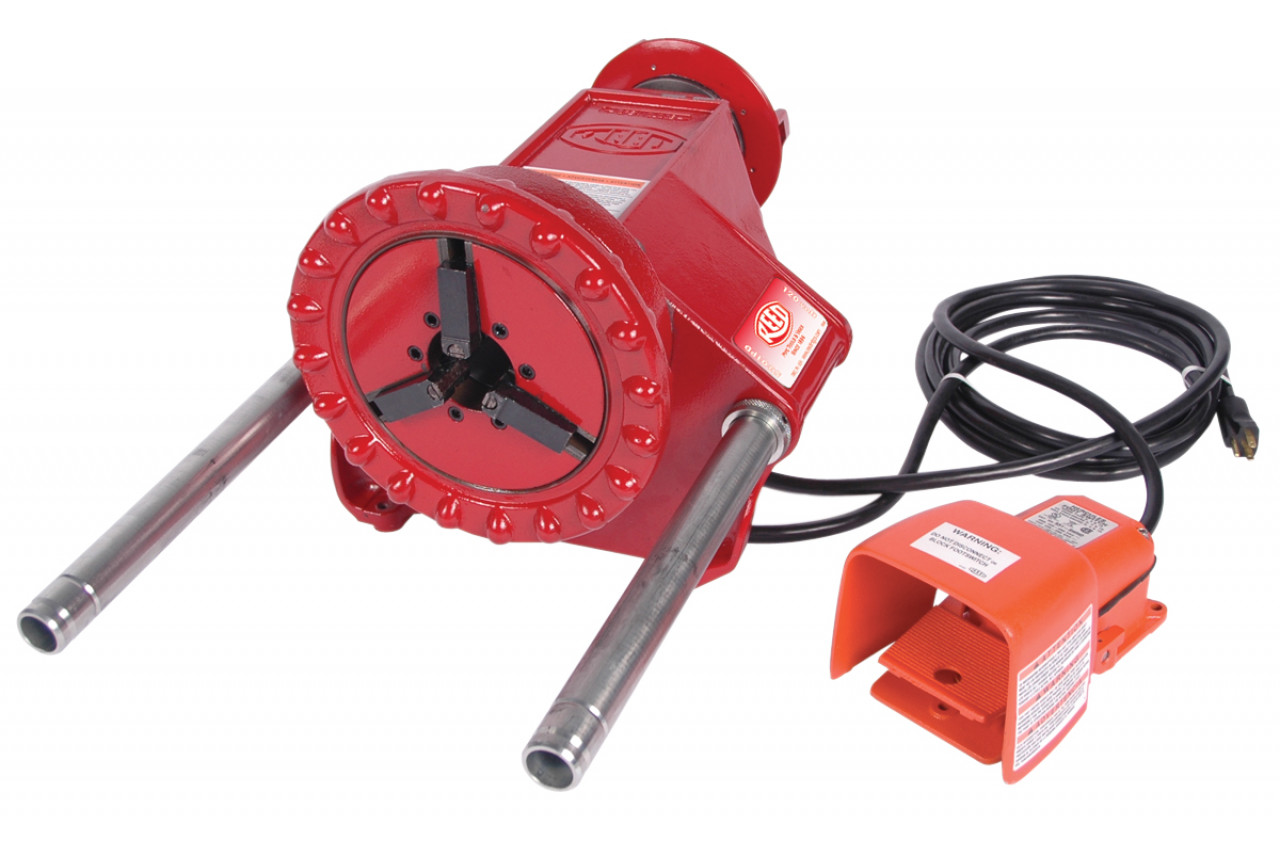

REED 5301PD Power Drive rotates the pipe while cutting, threading, or reaming operations are performed on up to 2” diameter pipe or bolt. The flat housing top provides a convenient workspace. REED offers both basic 5301PD power drive machines with foot pedal and the 5301PDCOMP complete models including a tripod, transporter, carriage, reamer, pipe cutter, universal die head, high speed steel (HSS) universal dies, oiler and cutting oil.
5301PD is approved to US and CSA Canada standards.
Flat top of housing is ideal for placing tools. 5301PD includes long-lasting high speed steel (HSS) dies, not alloy dies. All steel oiler (not plastic) with 60” (not 54”) hose included with COMP units.
