97511 - UPCBPVC - Universal Pipe Cutter Blades

UPCBPVC
97511 - UPCBPVC - Universal Pipe Cutter Blades
Catalog No.: UPCBPVC
Item Code: 97511
Specifications
Description
PVC Bevel Cutter Accessory
Pipe Diameter
6"- 48" (150-1300 mm)
Application
PVC
Arbor Size
in
3/4
mm
19
Dimensions in
Length
3.25
Width
3.25
Height
1.25
Dimensions mm
Length
89
Width
89
Height
32
-

Long arbor #97561 is required for use with this bevel cutter since cutter has 1 1/4" blade thickness.

-

Used with UPCARB4 or UPCARB6 cut-off blades.

Features

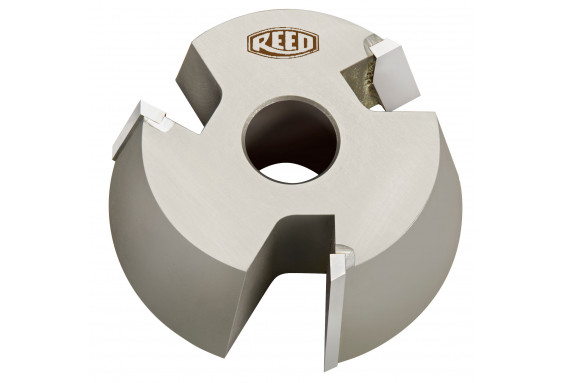

  • This accessory for REED Universal Pipe Cutters (UPC) produces a 15 degree bevel on PVC pipe, including C900 PVC.
  • To cut and bevel simultaneously, UPCBPVC bevel tool is used with REED UPC blades: 97510, 97514, 97519, 97520.
  • Bevel tool accessory features three carbide cutting edges for long life.
  • UPCBPVC bevel tool cuts up to 1-1/8” long bevel; adjust the bevel length by setting the UPC blade’s depth of cut.
  • Thickness of UPCBPVC supports forces when the bevel accessory is heavily engaged.
