Schraubstöcke der mittleren Preisklasse

Features

  • Mid-level pricing for a well-made, durable vise.
  • The vise screw and nut are enclosed to keep out dirt, and they are permanently lubricated.
  • Rubber washers on the handle reduce finger pinching injuries.
  • Always use vise of proper size and capacity to hold work object.

Bei Ihrem Händler Reed

Katalog-ZahlArtikel-CodeAusladung Backenbreite Backen (geöffnet) Rohrkapaz. (Nennwt. in Zoll) Gewicht
Zoll mm Zoll mm Zoll mm Pfund kg

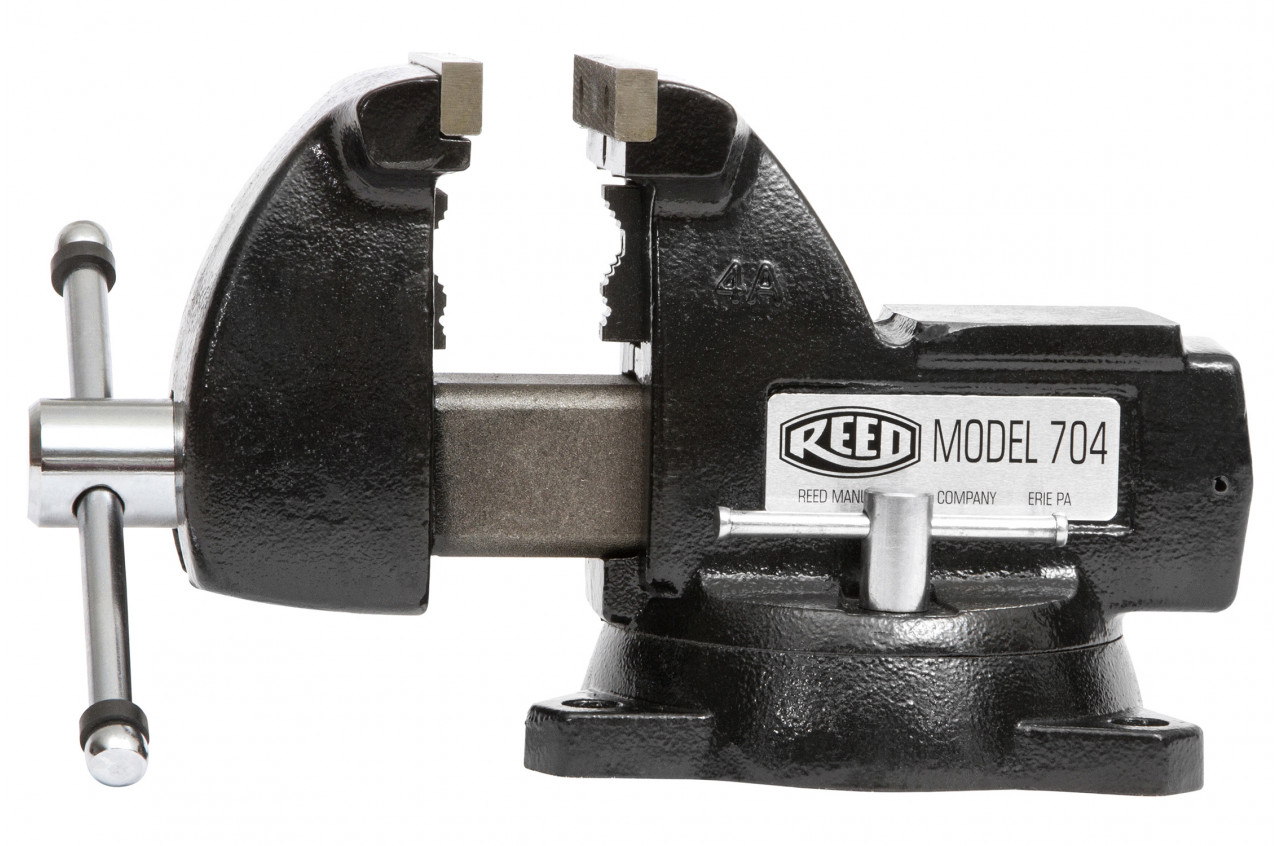

704 013853.45 88 4 102 4.5 114 1/2 - 2 36.0 16.4
705 013873.75 95 5 127 5.5 140 1/4 - 2 1/2 47.0 21.4
706 013894.10 104 6 152 5.7 146 1/4 - 3 1/2 61.0 27.7

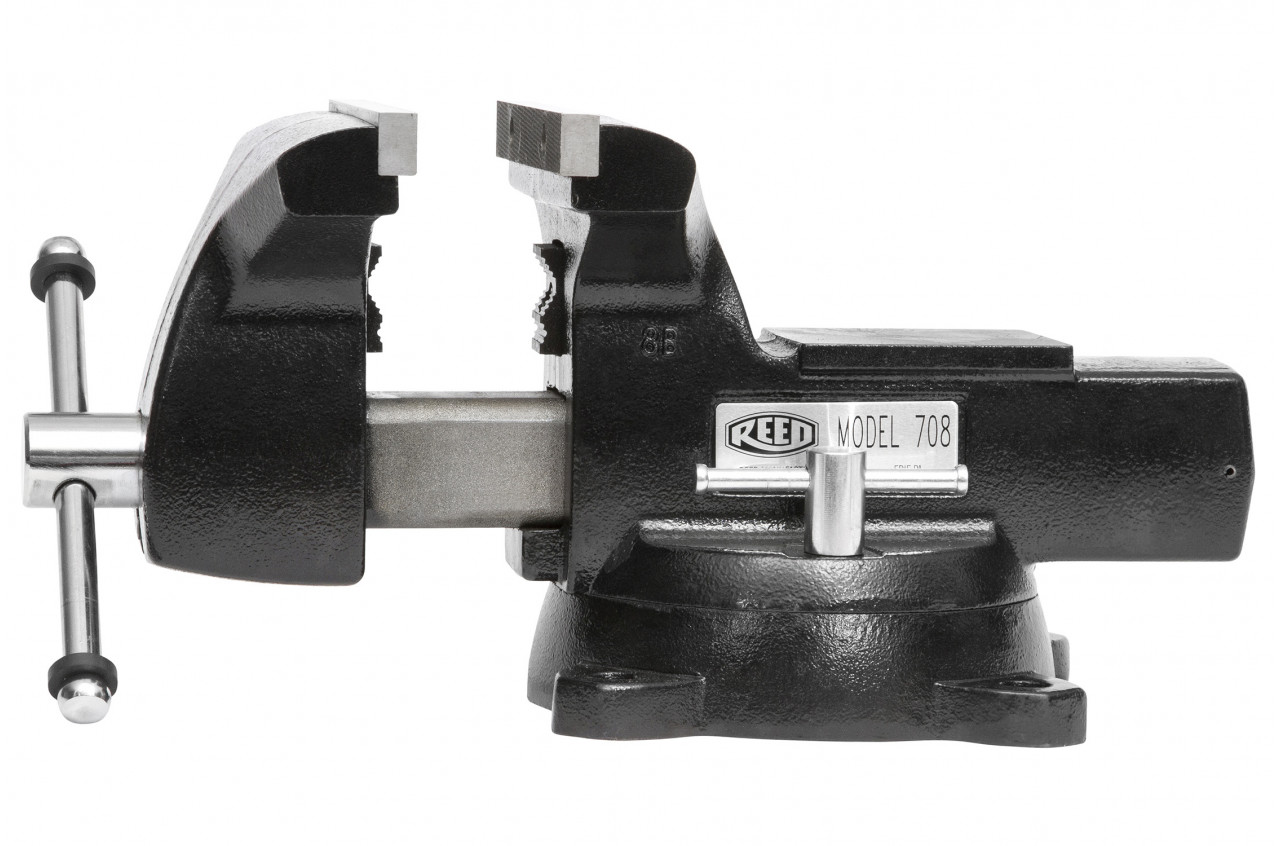

708 [1]013904.75 120.7 8 203 8.25 209.6 1/4 - 3 1/2 81.8 37.2
[1]

NEU!

Why Reed

Vises have enclosed screw assembly for all-weather protection.

Mid-line vises are of strength and price between the Combination Vise and Utility Vise. Design features a machined work surface. The main screw and nut are totally enclosed to keep out dirt and eliminate wear. Straight line pull through the bar and the body greatly reduces wear on main vise nut. Mid-line vises are imported and have replaceable, hardened steel jaw facings and replaceable pipe jaws which are serrated and heat-treated. The base swivels 360° and has two swivel base locking clamps with toothed engagement.

There are currently no Part Files for this Product.

get reader

There are currently no Manuals for this Product.
