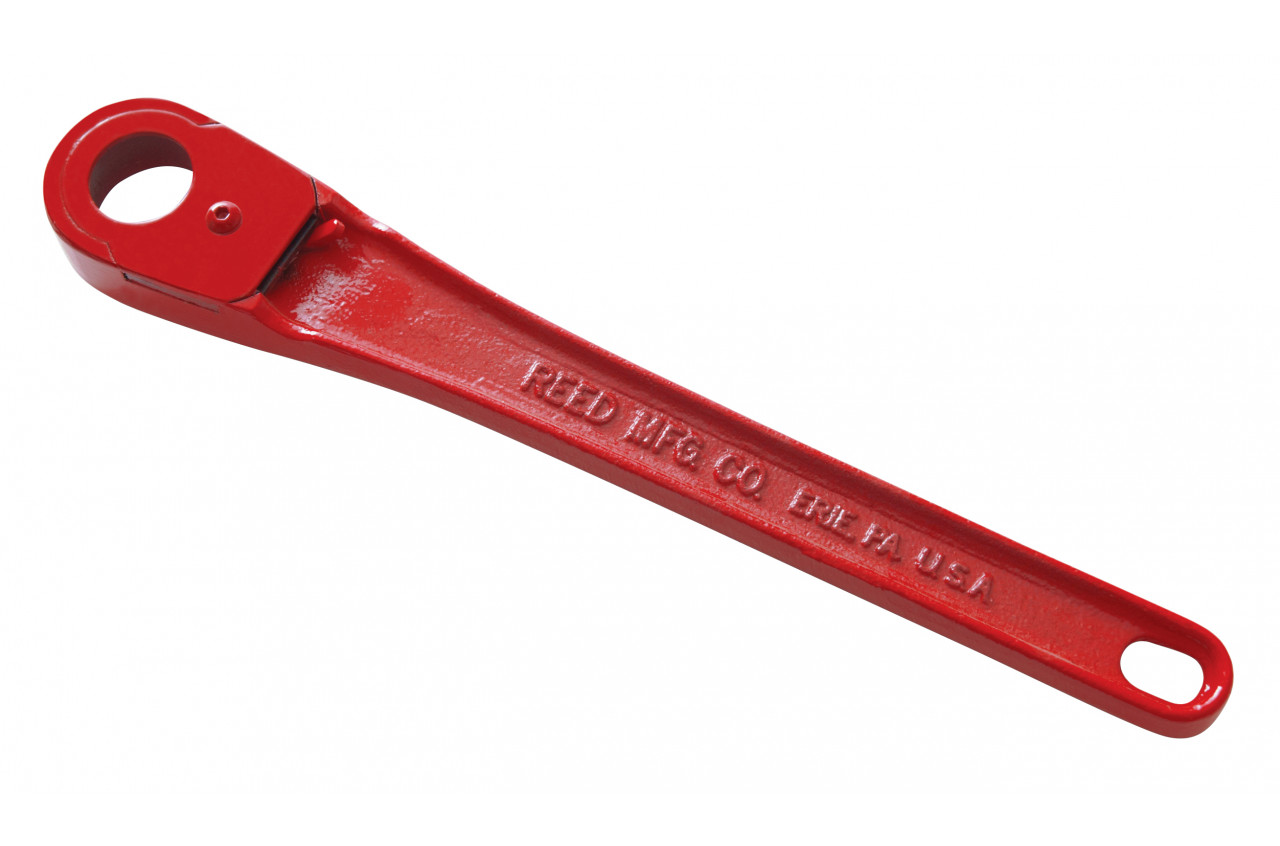

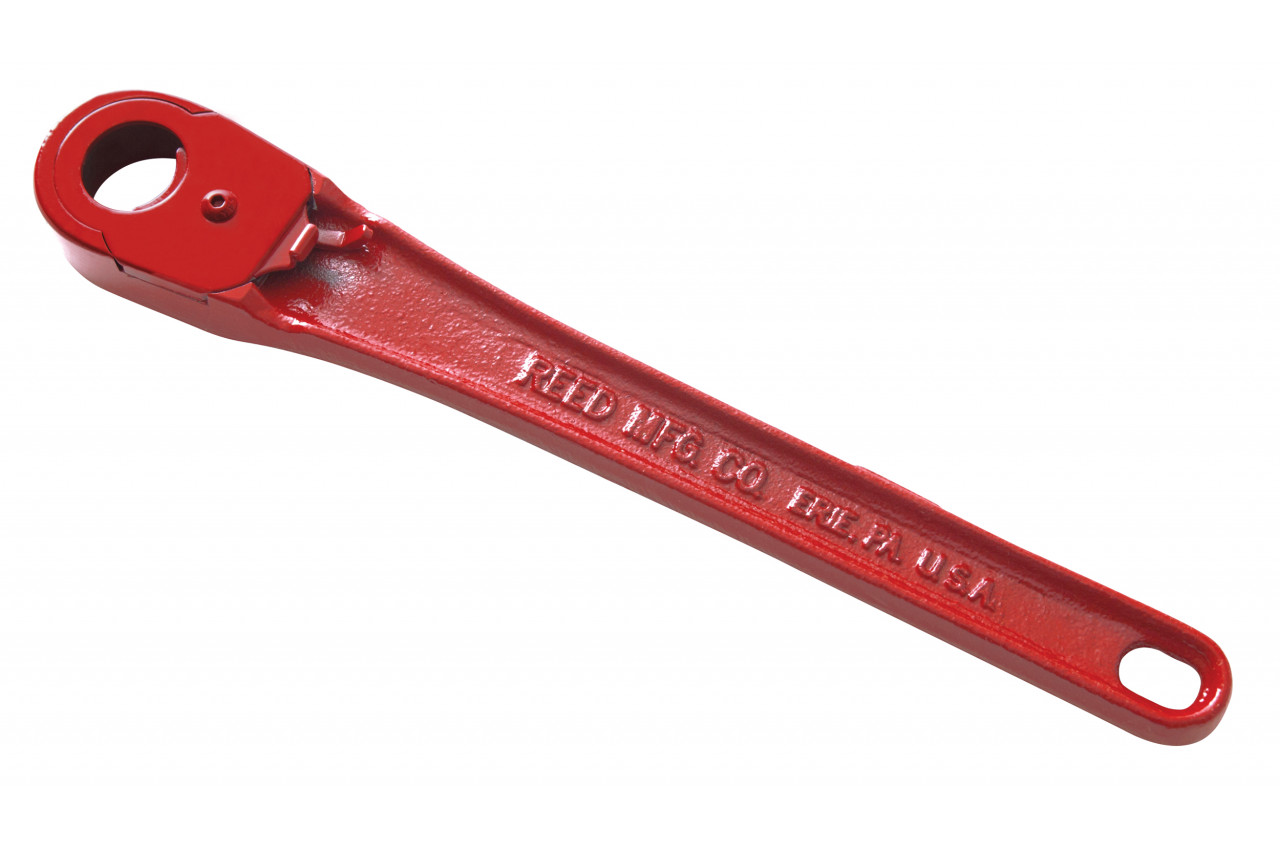

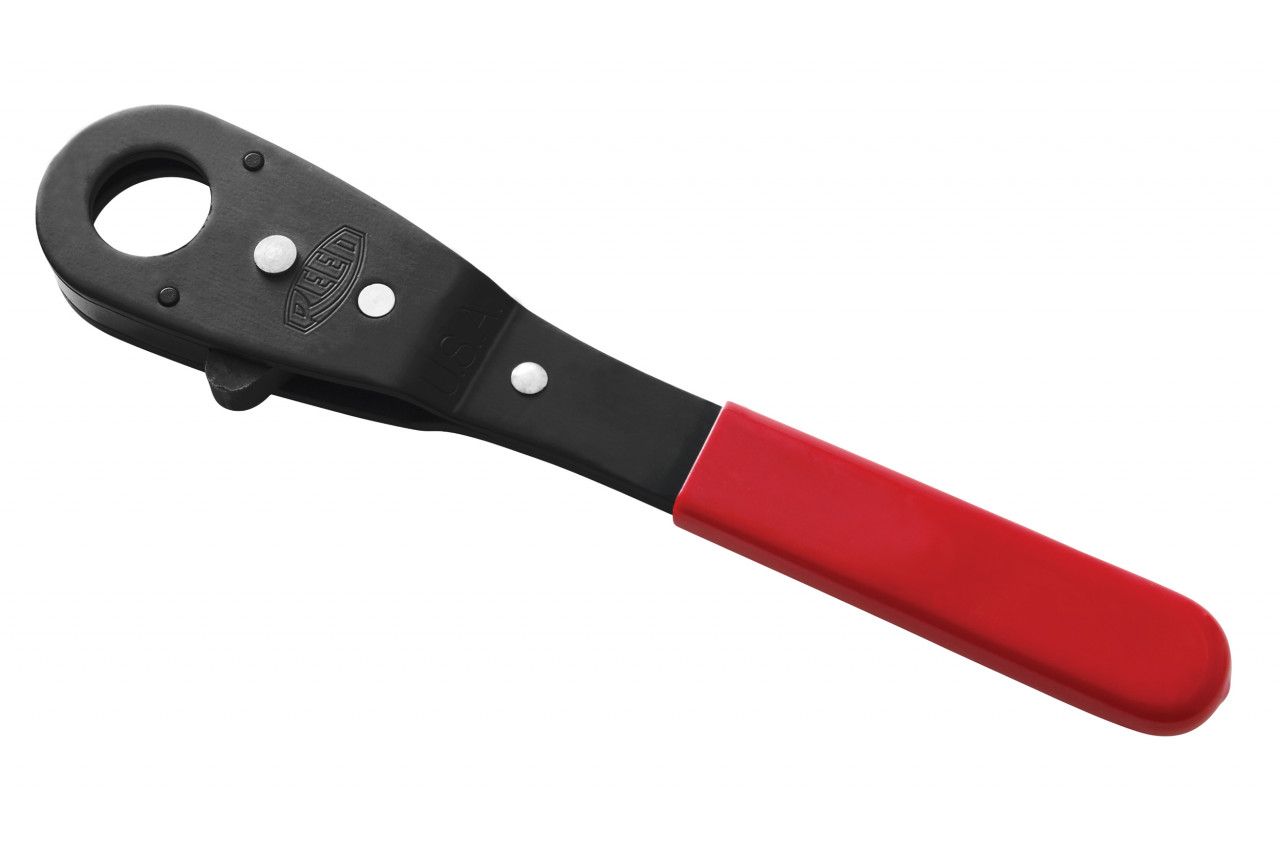

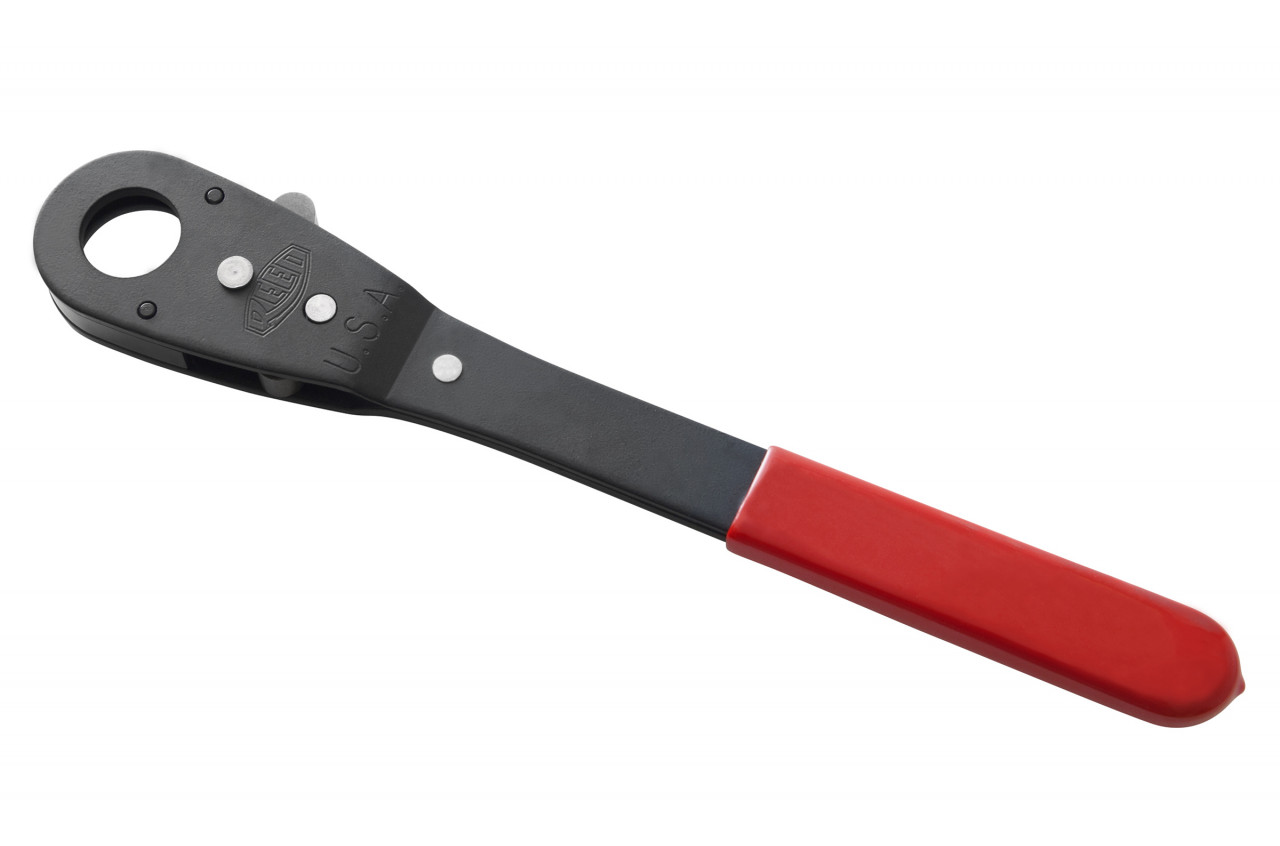

棘轮扳手手柄

特性

  • 从用展性铁铸造而成的手柄或冲压而成的低成本钢质手柄中进行选择。
  • “快速松释”套筒限位装置可使套筒发生快速变化。
  • L564以可调式手柄为特点,可以接触到难以触及的地方。

当地购买

品名订货号类型 把手长度 重量
把手 套接口重叠 英寸 毫米 千克
L50 02258Cast Retaining Ring 11 280 1.5 0.7
L51 02259Cast Retaining Ring 13 330 1.7 0.8
L500 02260Cast Quick Release 13 330 1.7 0.8
L150 02261Stamped Retaining Ring 11 280 1.4 0.6
L151 02262Stamped Retaining Ring 13 330 1.7 0.8
L564 02263Cast & Adjustable Quick Release 16 420 3.5 1.6
L152 02670Stamped Retaining Ring 17 432 2.5 1.1
Why Reed

力得提供的Thru-Bolt™棘轮手柄和套筒显著减少了紧固或移除螺母所需的时间,从而大大节省了装配时间和成本。

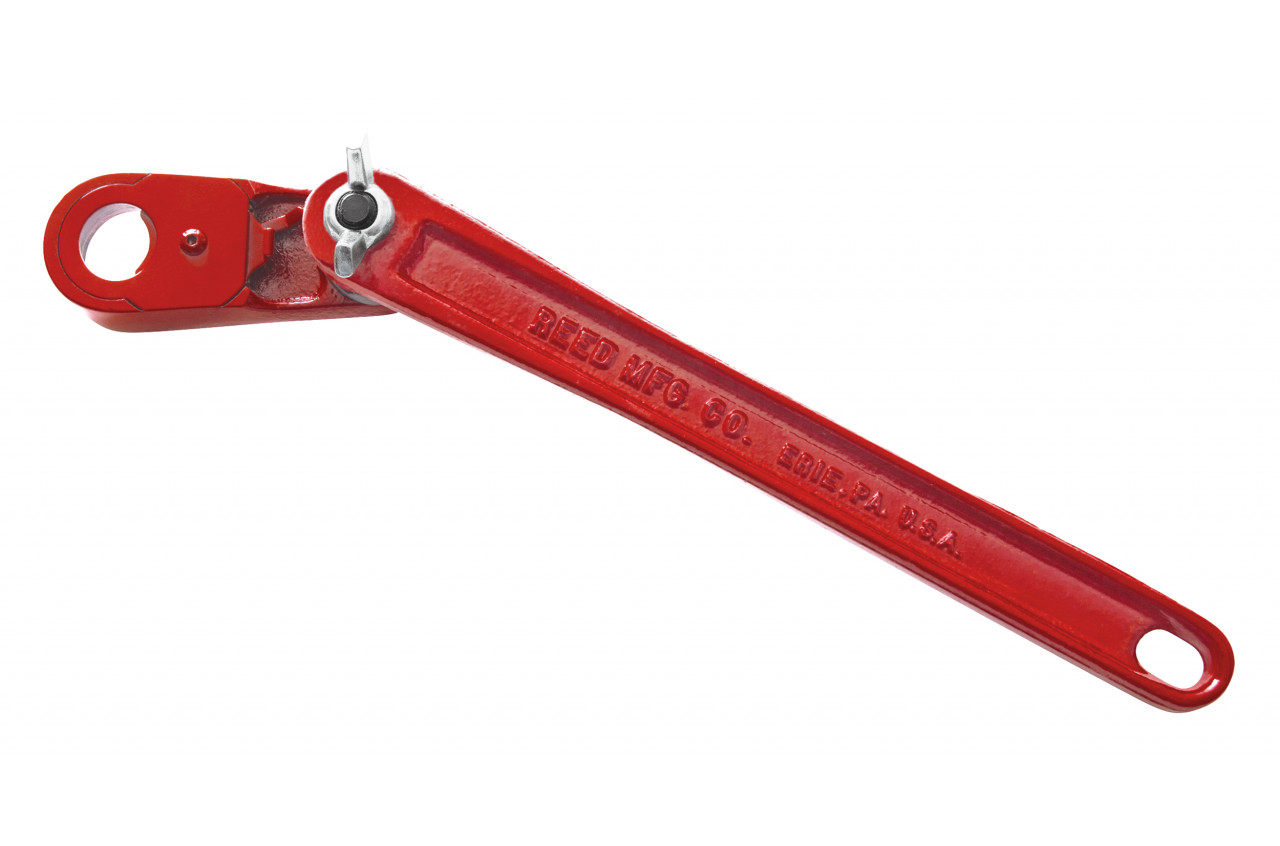

L564 以“快速松释”按钮为特点,另外,其可调式手柄便于接触到难以触及的地方。

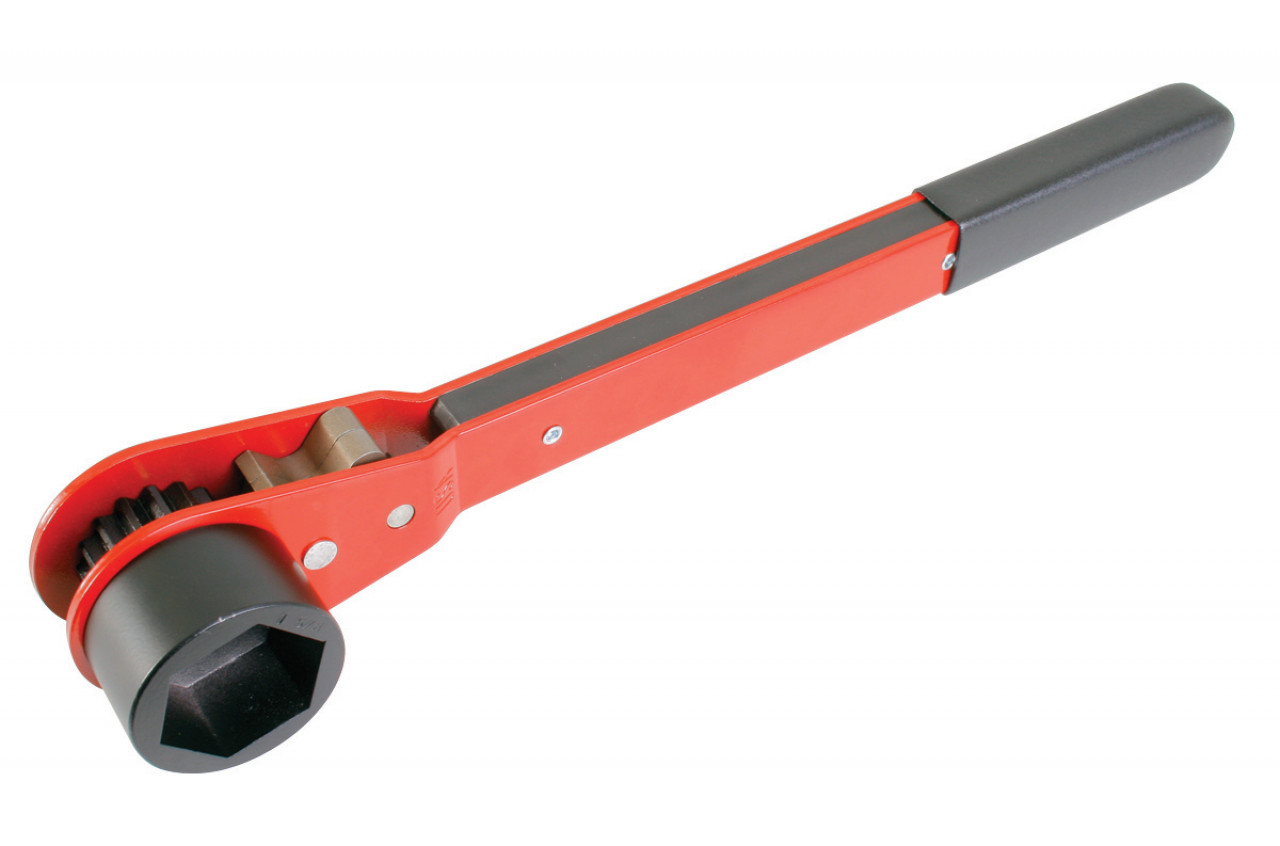

Reed Thru-Bolt™ ratchet wrenches work faster than pipe wrenches or adjustable wrenches for tightening or loosening nuts on long, threaded bolts of service saddles, repair clamps, flanges, mechanical couplings, etc. Reed Thru-Bolt™ Ratchet Wrench Handles are made with traditional malleable iron or lower cost steel stampings. For larger hardware found on 30” - 36” diameter pipe, the L152 is the Thru-Bolt™ ratchet wrench suited to the job. It's larger sockets are L23, L24, and L26. (Sockets sold separately.)

There are currently no Accessories
