多用途管道接管机

PJ414
多用途管道接管机

特性

  • Join gasketed pipe up to 14" nominal diameter.

规格

品名订货号容量重量
公称尺寸实际外直径毫米千克
PJ414080804 - 14102 - 35534.015.5



Note: Not for use with solvent cement joining of plastic pipe.

更多信息

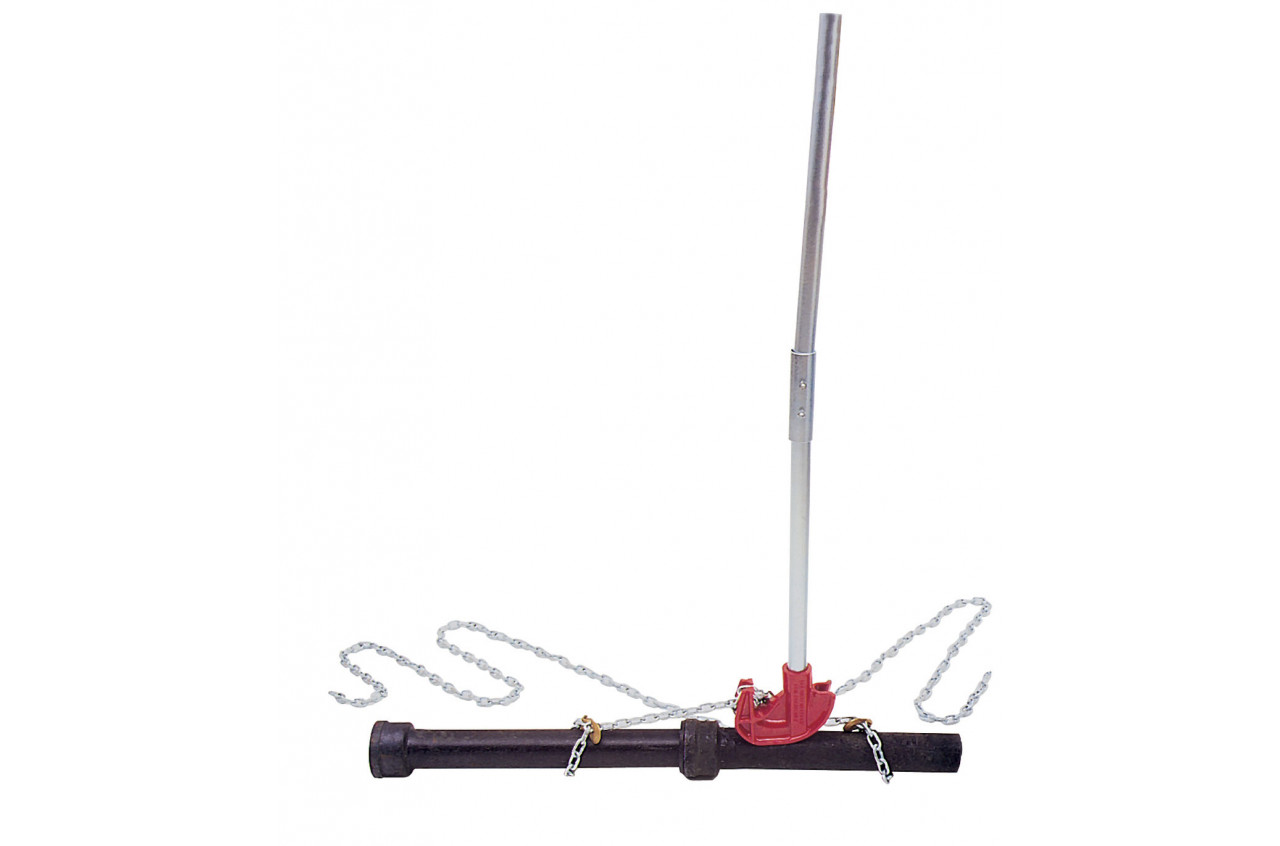

PJ414 Multi-Purpose Pipe Joiner allows a basic lever-and-chain approach to joining medium and large gasketed pipe and fittings up to 14” size. It works for PVC, ductile iron, clay tile, cast iron soil pipe and concrete pipe. Use two PJ414’s for heavier pipe. Quarter-inch proof coil chain is rated at 1600 lbs (727 kg). PJ414 pipe joiner comes complete with two 12’ (3.7 m) lengths of chain, two grab hooks, plus a two-piece extendable handle of over 4 feet that allows for a variety of applications.
