Rotary™ Cutters - 旋转式切管机

RC24
Rotary™ Cutters - 旋转式切管机

特性

  • 管子被切断时,切口笔直。
  • 是冷切割的首选工具。
  • 可用于切割大管径管道。

规格

品名订货号管径切割轮应用[1]长度重量
标称钢管英寸标称铸铁和球墨铸铁英寸实际外直径毫米英寸毫米千克
RC20S0324020 - 22-476 - 572RCS8-36Sch. 80 Stainless/Sch. 40 Steel 20"10626808940.5
RC20I03242-18 - 20476 - 572RCI8-30Cast/Ductile Iron10626808940.5
RC24S0325024 - 26-584 - 660RCS8-36Sch. 80 Stainless/Sch. 30 Steel 24"
Sch. 80 Stainless/ Sch. 30 Steel 26"
111280710748.6
RC24I03252-22 - 24584 - 660RCI8-30Cast/Ductile Iron111280710748.6
RC30S[2]0326028 - 34-698 - 864RCS8-36Sch. 40 Stainless/Sch. 30 Steel 28"
Sch. 80 Stainless/ Sch. 30 Steel 30"
Sch. 80 Stainless/ Sch. 30 Steel 32"
Sch. 40 Stainless/Sch. 30 Steel 34"
962438283128.6
RC30I[2]03262-30698 - 864RCI8-30Cast/Ductile Iron962438283128.6
RC36I[2][3][4]03263-30813 - 915RCI8-30Cast/Ductile Iron962438295134.1
RC36S[2][5]0326432 - 36-813 - 915RCS8-36Sch. 80 Stainless/ Sch. 30 Steel 32"
Sch. 40 Stainless/Sch. 30 Steel 34"
Sch. 80 Stainless/ Sch. 30 Steel 36"
962438295134.1
RC42S0326540 - 42-1016 - 1067RCS8-36Sch. 80 Stainless/Extra Heavy Steel 42"1082743325147.7
RC20X[6]0327020 - 22-476 - 572RCXSch. 80 Stainless/ Sch. 40 steel 20"10626808940.5
RC24X[6]0327124 - 26-584 - 660RCXSch. 80 Stainless/ Sch. 40 Steel 24"
Sch. 80 Stainless/ Sch. 20 Steel/ Extra Heavy Steel 26"
111280710748.6
RC30X[6]0327228 - 34-698 - 864RCXSch. 40 Stainless/ Sch. 30 Steel 28"
Sch. 80 Stainless/ Sch. 30 Steel 30"
Sch. 80 Stainless/ Sch. 40 Steel 32"
Sch. 40 Stainless/ Sch. 40 Steel 34"
962438283128.6
RC36X[6]0327332 - 36-813 - 915RCXSch. 80 Stainless/ Sch. 40 Steel 32"
Sch. 40 Stainless/ Sch. 40 Steel 34"
Sch. 80 Stainless/ Sch. 40 Steel 36"
962438295134.1
RC42X[6]0327440 - 42-1016 - 1067RCXSch. 80 Stainless/ Extra Heavy Steel 42"1082743325147.7
[1]

包括列出的管子表号,还包括相同管型的所有较低表号。

[2]

可提供转换套件。

[3]

By changing the cutter wheels to RCS8-36 wheels, the RC36I is able to cut 32-36" steel pipe.

[4]

RC36I cutter is limited to 30" cast/ductile iron.  It does not expand far enough for 36" cast/ductile iron pipe.

[5]

By changing the cutter wheels to RCI8-30 wheels, the RC36S is able to cut 30" cast/ductile iron pipe.

[6]

最新!

注明:S 代表钢;I 代表铸铁和球墨铸铁。所有旋转式切管机的刀片均通用。推荐使用力得原产刀片。力得刀片采用高级耐冲击工具钢,经过计算机数控机床加工,而后经过精确的热处理。因此,力得刀片薄但坚固,切割起来省力迅速,尤其适合不锈钢和球墨铸铁。其它特点还有寿命长和物有所值。

更多信息

冷切大管径的钢管,多数不锈钢,球墨铸铁和铸铁管。适合小空间操作(见右图)。每个切管机都配备活动手柄,可用它将切管机向一个方向扳动。手柄还可以在切管机每转动半圈时,上紧一次进刀螺母。旋转式切管机是切球墨铸铁管的首选工具,因为手柄长而省力,管壁被切穿一半时,管子基本就会断掉。切管机机架坚实牢固。所有旋转式切管机均用一个型号的刀片,切钢和不锈钢时,用RCS8-36刀片;且球墨铸铁和铸铁时,用RCI8-30刀片。RCX 刀片用来切厚壁管。
Exclusive Tool Truck Freight Required Video Training
Why Reed

旋转式切管机是力得发明!力得旋转式切管机切割安全,省力,迅速而且成本低。切口笔直而且适于在小空间内操作 - 沟中,水下,无噪音区,头顶以及管排之间。力得切管机的寿命能持续几十年。

文件

Get Adobe Reader
47 ROTARY RC20-RC24_thumbnail.png 85 ROTARY RC30 RC36 RC42_thumbnail.png 50076-Rotary-Cutters-3-13-thumbnail.png RC42-Rotary-Cutter-thumbnail.png Rotary-Cutter-3-09-thumbnail.png
备件图
单页宣传资料

视频

全集的 Reed 培训视频 可参见 “资源” 菜单。

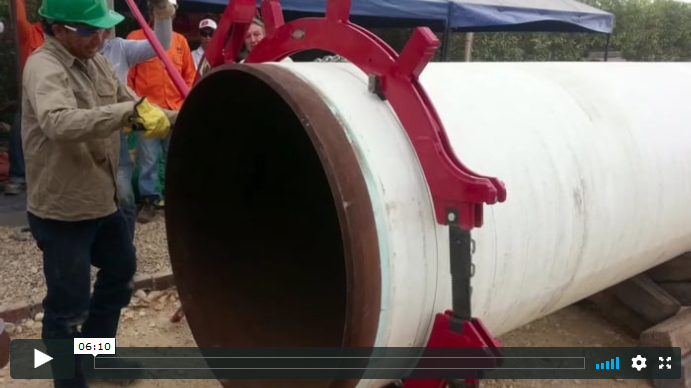

小空间旋转式切管机和旋转式切管机

RC30/RC36/RC42等旋转式切管机的安装和操作

用户照片

RC36S

RC36S

RC36S

RC36S

RC30 tightening nuts

RC30 tightening nuts

RC42 in use – Colombia

RC42 in use – Colombia

RC42 in use – Colombia

RC42 in use – Colombia

RC42 in use – Colombia

RC42 in use – Colombia

RC42 in use – Colombia

RC42 in use – Colombia

RC42 in use – Colombia

RC42 in use – Colombia
