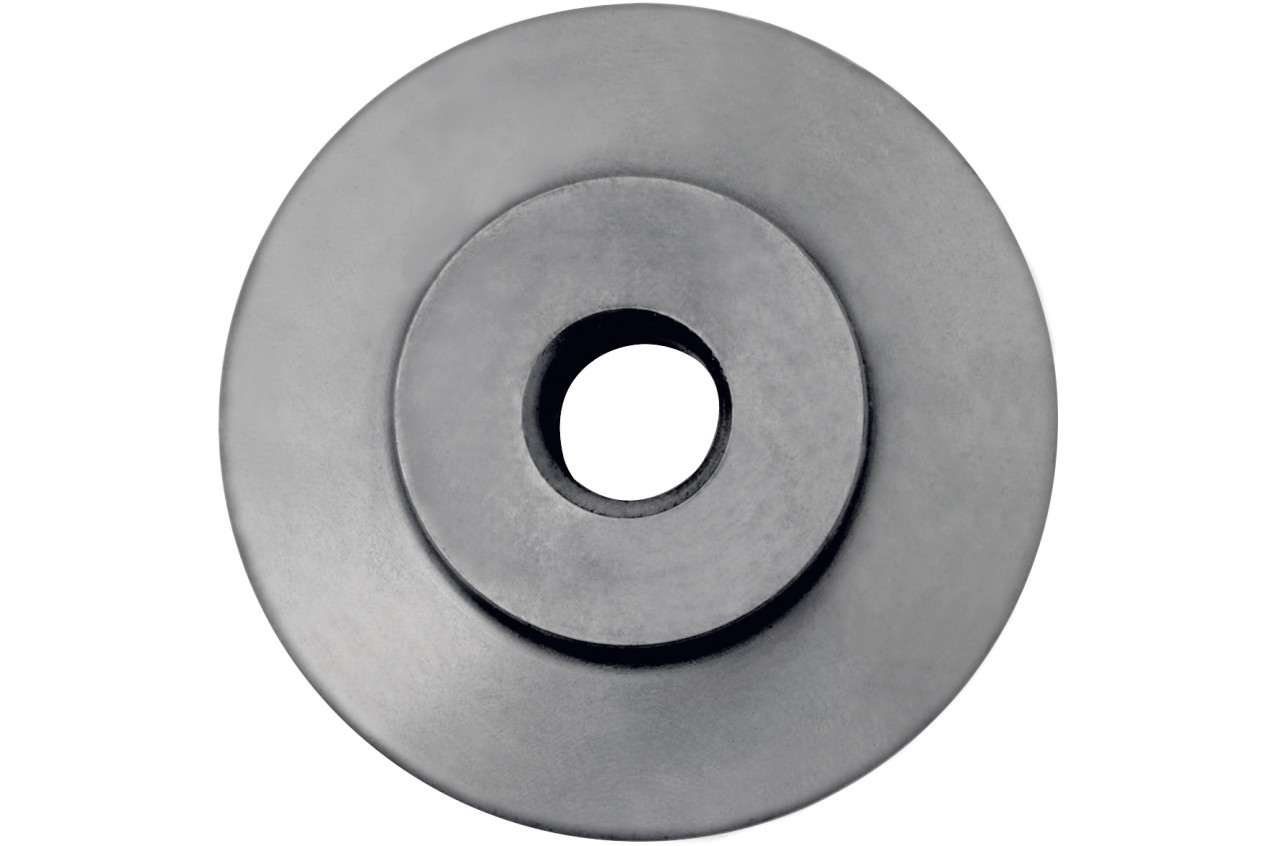

用于 Hinged Cutters™ 切割器的切割轮

HS21/2
用于 Hinged Cutters™ 切割器的切割轮

规格

品名订货号标准包装[1]Reed 切割器刀刃长度[2]应用
英寸毫米
HS21/2035024H21/20.3127.9Steel; Stainless Steel
HS4035044H40.3208.1Steel; Stainless Steel
HSI4035054H40.2757.0Steel; Stainless Steel; Cast Iron; Ductile Iron
HS6035064H60.3909.9Steel; Stainless Steel; Copper
HSI6-8035074H6; H80.3508.9Steel; Stainless Steel; Cast Iron; Ductile Iron
HS8-12035084H8; H120.45011.4Steel; Stainless Steel
HX21/2035104H21/20.3839.7Steel; Stainless Steel; Schd 80
HX4035124H40.3839.7Steel; Stainless Steel; Schd 80

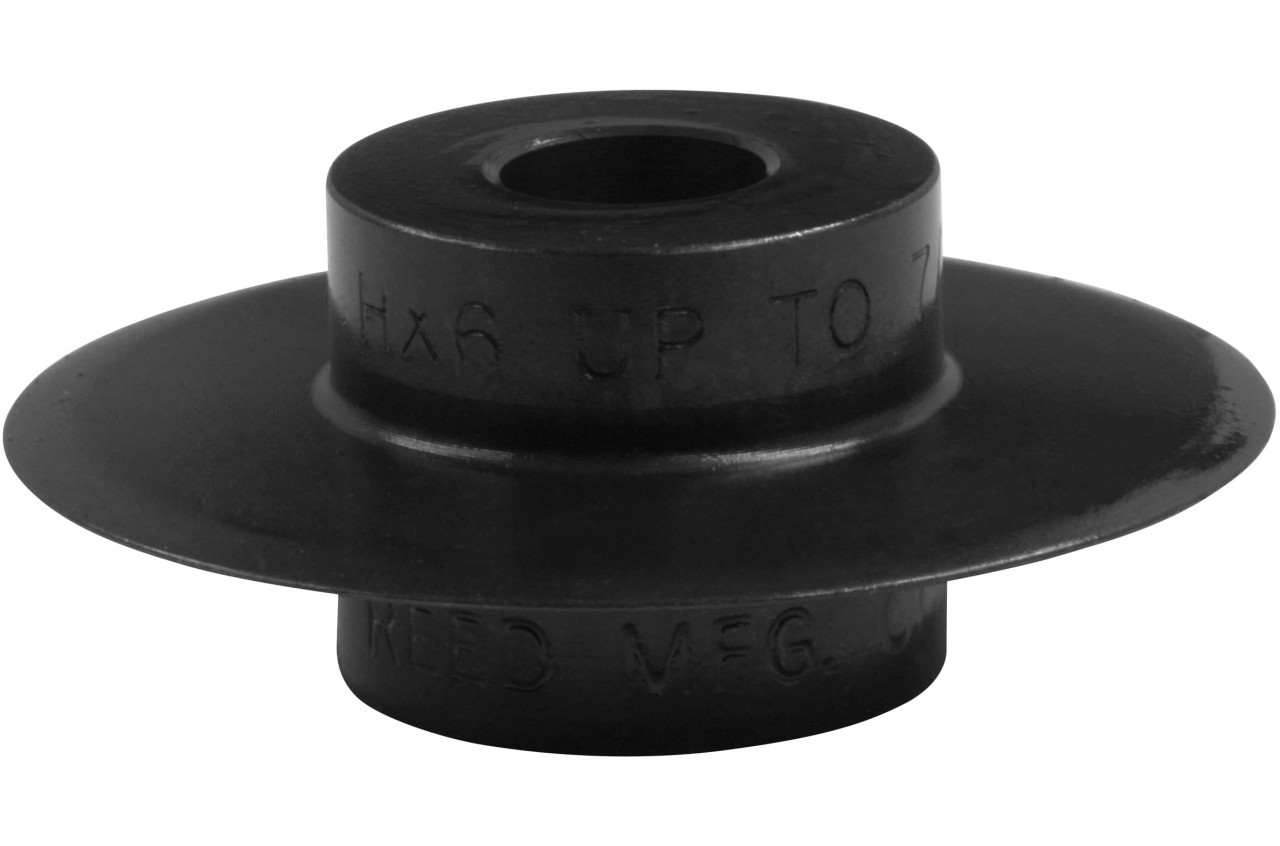

HX6035144H60.47612.1Steel; Stainless Steel; Schd 80
HX8035164H8; H120.56714.4Steel; Stainless Steel; Schd 80
HXX8035184H8; H120.68217.3Steel; Stainless Steel; Schd 100

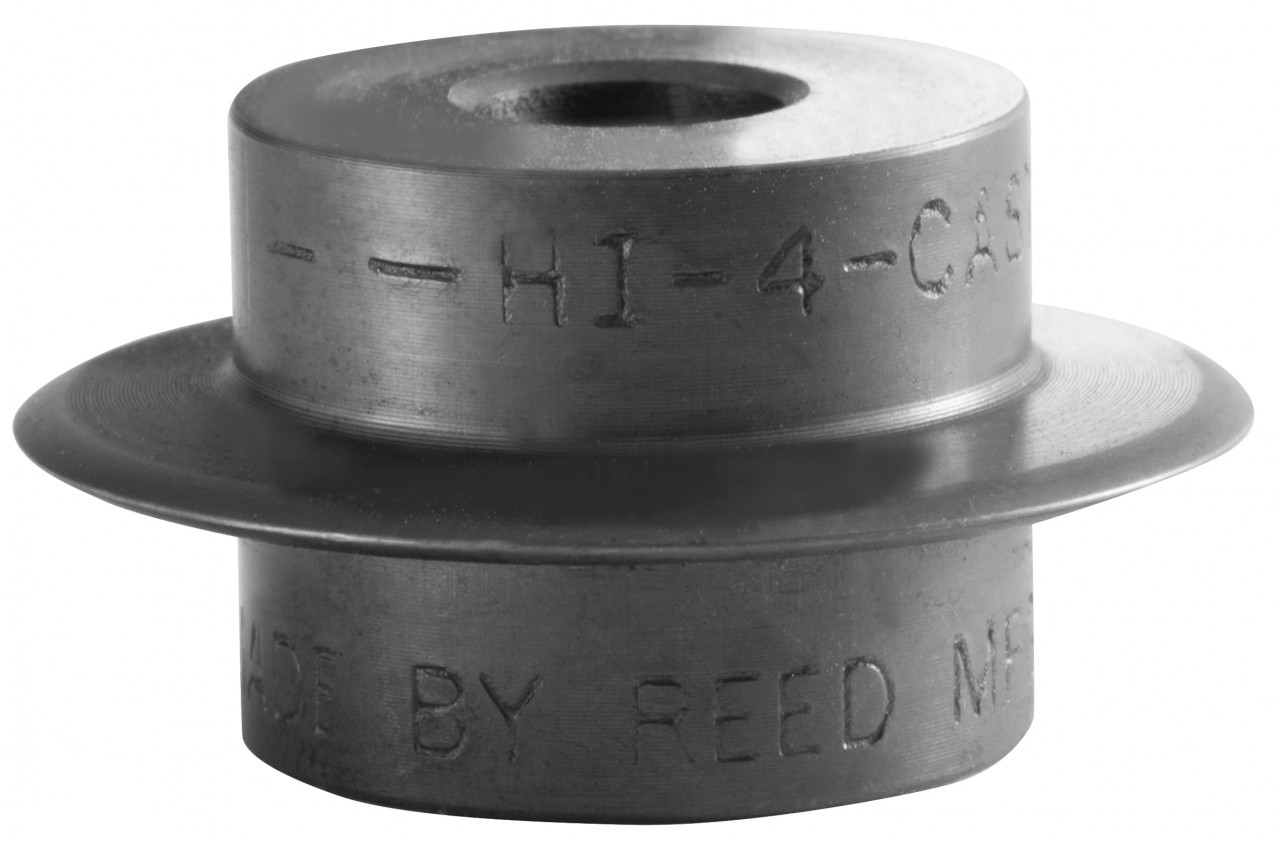

HI4035224H40.2586.6Cast Iron; Ductile Iron

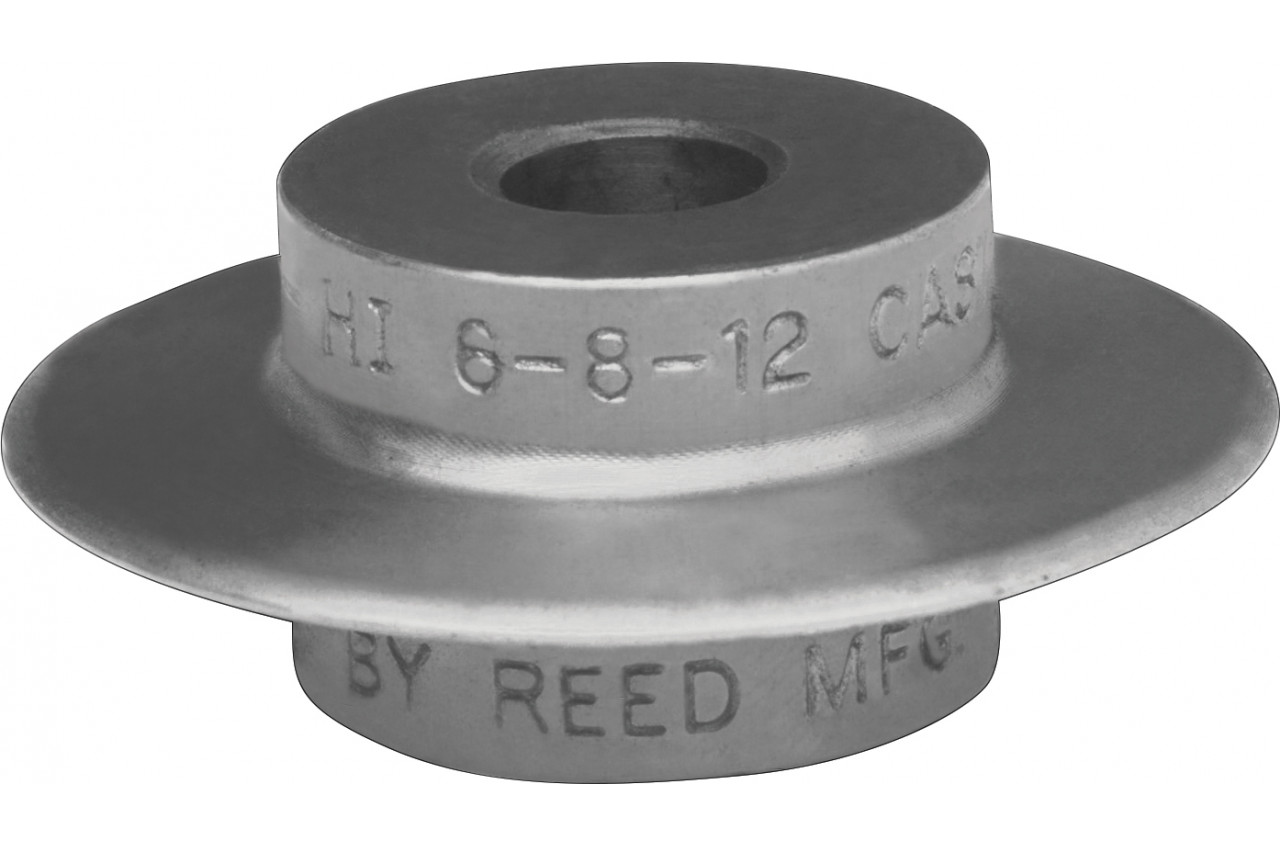

HI6035244H6; H8; H120.41010.4Cast Iron; Ductile Iron

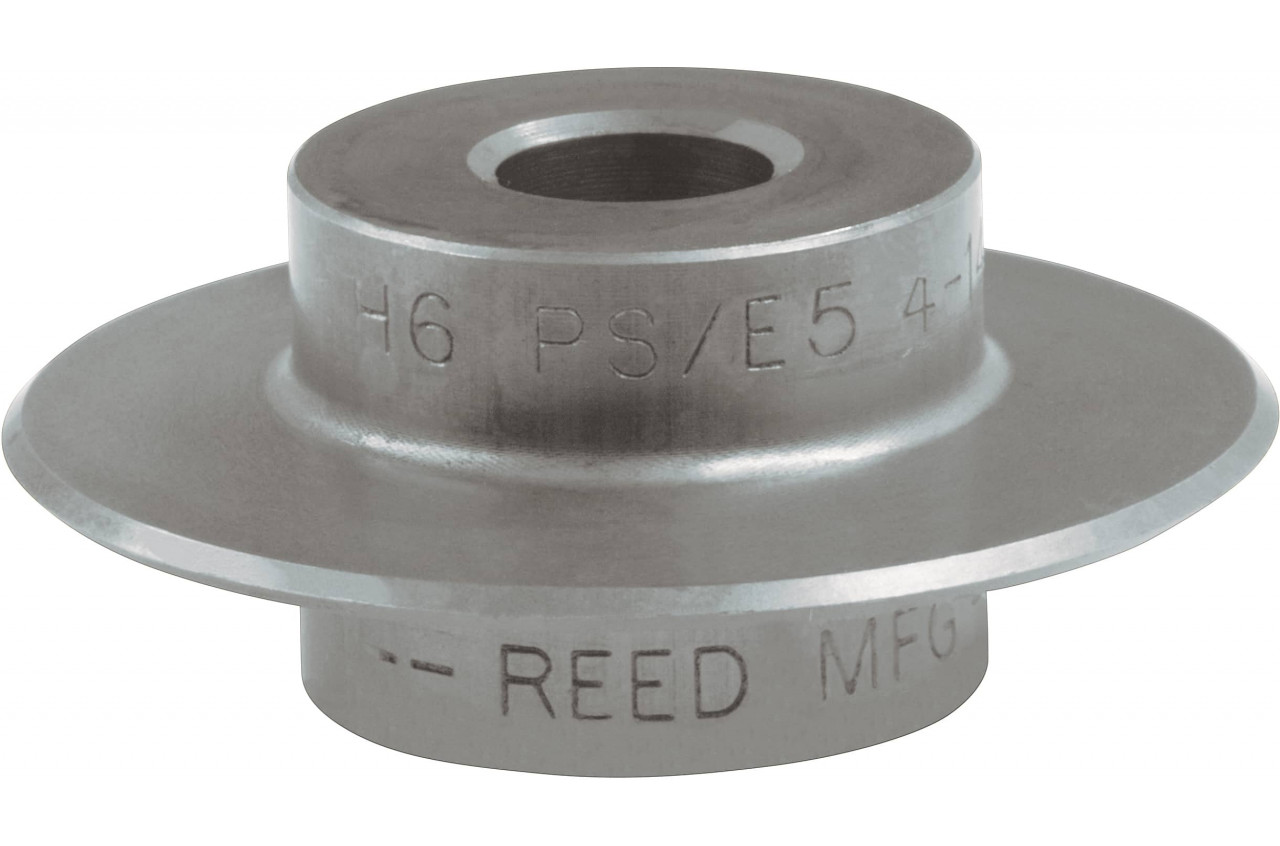

H6PSE5035254H6; H8; H120.40010.2Steel; Cast Iron; Ductile Iron
HSB6035764H6.3909.9Steel; Stainless Steel
2RBCI0362412H21/20.1543.9Cast Iron; Ductile Iron
[1]

切割轮仅以标准包装数量出售给经销商!

[2]

刀刃暴露长度确定切割轮可进入的壁厚。
